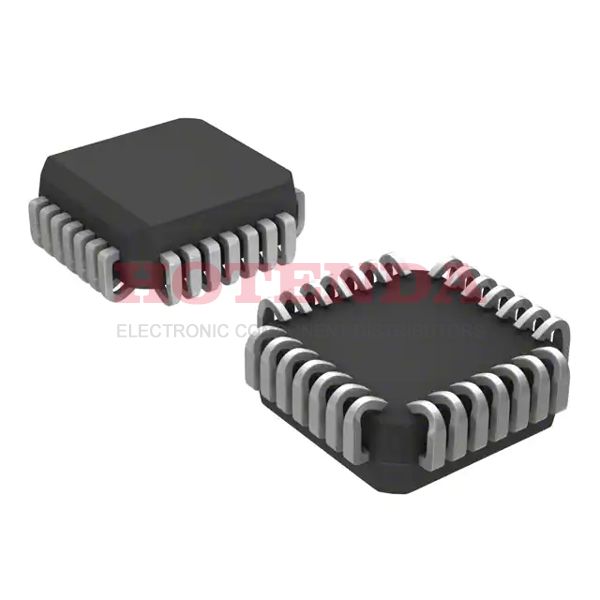

Name: A6812EEPTR
Brand: Allegro MicroSystems
SKU: A6812EEPTR
Availability: InStock

new-10%

A6812EEPTR

Manufacturer part number:A6812EEPTR

Manufacturer:Allegro MicroSystems

Description:3.3/5V Bipolar 1.27mm PMIC A6812 3.3V 28-LCC (J-Lead)

Case Package:SOT-23

Datasheet:A6812EEPTR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	28-LCC (J-Lead)
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2009
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	CAN ALSO OPERATE WITH 5V LOGIC SUPPLY
HTS Code	8542.39.00.01
Subcategory	Display Drivers
Technology	CMOS
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Supply Voltage	3.3V
Terminal Pitch	1.27mm
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	A6812
Pin Count	28
JESD-30 Code	S-PQCC-J28
Number of Outputs	20
Qualification Status	Not Qualified
Output Type	Bipolar
Power Supplies	3.3/5V
Interface	Strobe, Serial
Current - Output (Max)	40mA
Output Configuration	High Side
Voltage - Supply (Vcc/Vdd)	3V~5.5V
Supply Current-Max	6mA
Input Type	Non-Inverting
Switch Type	Latched Driver
Output Characteristics	OPEN-EMITTER
Output Polarity	TRUE
Ratio - Input:Output	1:20
Input Characteristics	STANDARD
Voltage - Load	60V Max
fmax-Min	10 MHz
Supply Voltage1-Nom	60V
Number of Segments	20
Multiplexed Display Capability	NO
Display Mode	DOT MATRIX
Height Seated (Max)	4.57mm
Length	11.51mm
Width	11.51mm
RoHS Status	Non-RoHS Compliant

A6812EEPTR Product Details

A6812EEPTR Overview

The package is in the form of a Tape & Reel (TR).In the 28-LCC (J-Lead) package, it is included.In this case, the LED driving board is mounted as Surface Mount.It owns Latched Driver switch type.In order to guarantee reliable performance, the temperature should be set to -40°C~85°C TA.In this LED driver, there are no outputs available.A voltage of 3V~5.5V is used to power it.A maximum voltage of Bipolar volts is available from the output of this LED driver.There is a A6812 family of things that it belongs to.It contains 28 terminations.It consists of 1 functions.There is a maximum output of 40mAV from the LED driver.The supply voltage can be 3.3V for high efficiency.28 pins are connected to it in total.The LED driver is packaged in an econtainer with a capacity of Display Drivers.3.3/5V is the power supply of the part.Using this LED driver, it is also possible to produce CAN ALSO OPERATE WITH 5V LOGIC SUPPLY.
