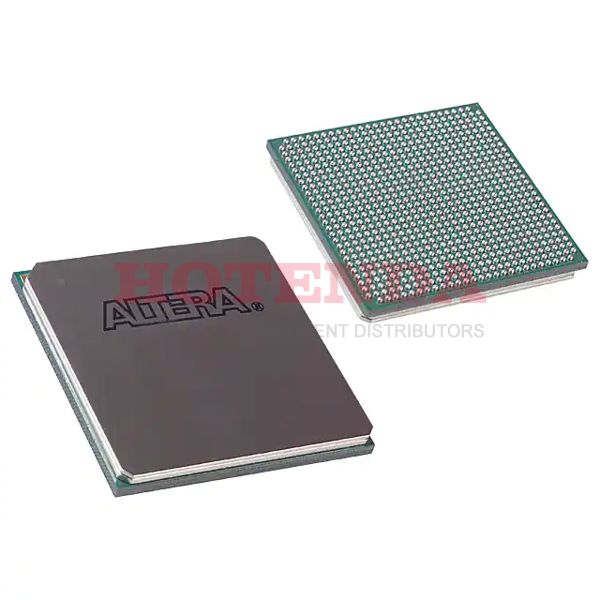

EP3C120F780I7N Overview
Fpga chips is supplied in the FBGA package. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. The device has 531 I/O ports for more coherent data transfer. In order to construct a fundamental building block, 119088 logic elements/cells are required. An electrical supply voltage of 1.2V powers it. In this case, the FPGA part belongs to the Field Programmable Gate Arrays family. This device is equipped with 531 separate outputs, which makes it a very versatile device. There are a total of 780 terminations. The RAM si486kBe of this FPGA module reaches 486kB to ensure normal operation of the program. It has a total of 780 pins that are designed for it. As long as this FPGA is mounted in Surface Mount, it should be able to function as it should in terms of its specifications, as well as its capabilities. As far as the maximum operating temperature of this module is concerned, it reaches 100°C. The operating temperature should be higher than -40°C. The device has a total of 780 pins on fpga semiconductor. The basic building block of the system is composed of 7443 logic blocks (LABs). A memory of 486kB is embedded in this FPGA module for storing data and programs. High efficiency is achieved by operating at a frequency of 437.5MHz. There is a maximum supply voltage of 1.25V that is supported by this product. Fpga semiconductor is able to work wfpga semiconductorh the minimal supply voltage of 1.15V. Approximately 315MHz is the maximum frequency of this FPGA.
EP3C120F780I7N Features
531 I/Os
780 LABs/CLBs
100°C gates
7443 logic blocks (LABs)
Operating from a frequency of 437.5MHz
EP3C120F780I7N Applications
There are a lot of Altera EP3C120F780I7N FPGAs applications.
- ASIC prototyping
- Data center hardware accelerators
- Automation
- Software-defined radios
- Secure Communication
- Defense Applications
- Solar Energy
- Industrial,Medical and Scientific Instruments
- Aircraft navigation
- Electronic Warfare
