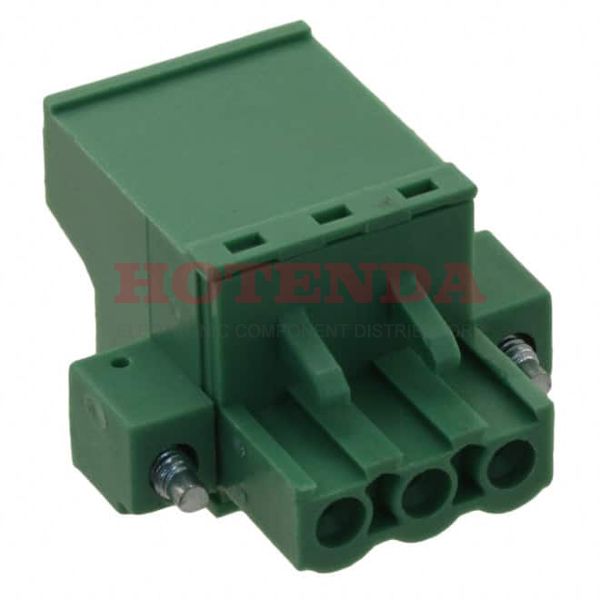

Name: 20020012-H031B01LF
Brand: Amphenol Anytek
SKU: 20020012-H031B01LF
Availability: InStock

new-10%

20020012-H031B01LF

Manufacturer part number:20020012-H031B01LF

Manufacturer:Amphenol Anytek

Description:20020012-H031B01LF datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Amphenol Anytek stock available on our website

Case Package:SOT-23

Datasheet:20020012-H031B01LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Thermoplastic Resin
Operating Temperature	-40°C~115°C
Packaging	Bulk
Published	2011
Series	03-508
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Terminal Block
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	15mm
Insulation Height	1.083 27.51mm
Current Rating	10A
Termination Style	Screw - Pressure Clip
Number of Contacts	3
Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-22 AWG
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	1-2.5mm2
Wire Strip Length	6-7mm
Screw Size	M2.5
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	24.84mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

20020012-H031B01LF Product Details

20020012-H031B01LF Overview

The packaging is Terminal Block.Free Hanging (In-Line) is the type of mounting for the device.To package the product, we use a Bulk case.This product is in the 03-508 Series.As a result of its Mating Flange, Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.In this case, Cable, Free Hanging mounts the part.-40°C~115°C Operating Temperature is what the device runs at.As with other Plug, Female Sockets products, this part has a lot of benefits.
