AD604ARSZ-RL Overview

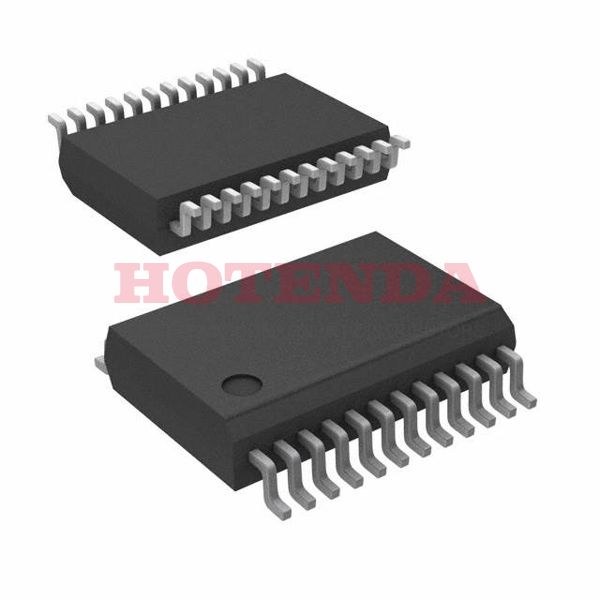

In the package, you will find a 24-SSOP (0.209, 5.30mm Width)-case to contain the op amp ic. Variable Gain-type instrumentation amplifiers are used in this application. A Tape & Reel (TR) case is used to deliver the buffer op amp. The number of terminations approaches 24. There are a total of 24 pins on this op amp. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 5V. I would like to specify that this buffer amplifier belongs to the Other Analog ICs-type of devices. Linear amplifier includes 24 pins. This electronic part is recommended for mounting type Surface Mount. Regarding the operating temperature of this device, instrumentation amplifier performs well at a temperature of -40°C~85°C . Using an 32mA supply current, this operational amplifier ics can be operated. Keeping the voltage gain at 54dB is the best course of action. This op amp ic has 2 circuits. There is a rating of 6 for the operating supply voltage of the buffer op amp. In this case, X-AMP? represents the instrumentation amplifiers' series number. The op amp resistance should stay within the range of 300kOhm. An analog IC known as ANALOG CIRCUIT is also used in this linear amplifier.
AD604ARSZ-RL Features
24 Pins
supply voltage of 5V
54dB voltage gain
Resistance of 300kOhm
AD604ARSZ-RL Applications
There are a lot of Analog Devices Inc. AD604ARSZ-RL Instrumentational OP Amps applications.
- Test and measurement instruments
- Information processing
- ECG equipment
- Subtraction operation circuits
- PDA
- Vehicle electronics
- Measurements of Wheatstone bridge
- Radar
- Biopotential
- Power generator
