AD712SQ/883B Overview

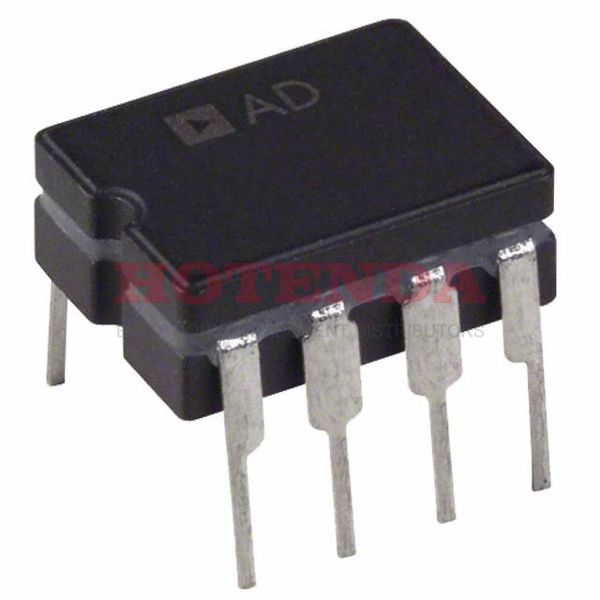

It is packaged in an 8-CDIP (0.300, 7.62mm)-case that protects the operational amplifiers from damage. Buffer amps of this type are called General Purpose-types. Upon delivery, op amp ic is packaged in a Tube case. During the past two weeks, there have been close to 8 terminations. A total of 8 pins are attached to buffer op amp. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 15V. In more specific terms, this linear amplifier can be categoriOperational Amplifiered as a Operational Amplifier-type device. Linear amplifier includes 8 pins. There is an input offset voltage of 1mV for this buffer op amp. This electronic component is recommended to be mounted using the mounting type Through Hole. Regarding the operating temperature of this device, instrumentation amplifier performs well at a temperature of -55°C~125°C . An 5.6mA volt supply current is needed for this linear amplifier to operate. The voltage gain should stay at 112.04dB. On the buffer amps, there are 2 channels that can be used. The Military, MIL-STD-883 represents the op amp's series number. Buffer amplifier has a quiescent current of 2.8mA.
AD712SQ/883B Features
8 Pins
supply voltage of 15V
112.04dB voltage gain
AD712SQ/883B Applications
There are a lot of Analog Devices Inc. AD712SQ/883B Instrumentational OP Amps applications.
- Cinema or auditorium audio system
- Comparator
- Hand-held batteries
- Radar
- pH (acidity)
- Information processing
- Test equipment
- High-frequency data acquisition systems
- Multimedia playback equipment
- Fast A/D and D/A converters
