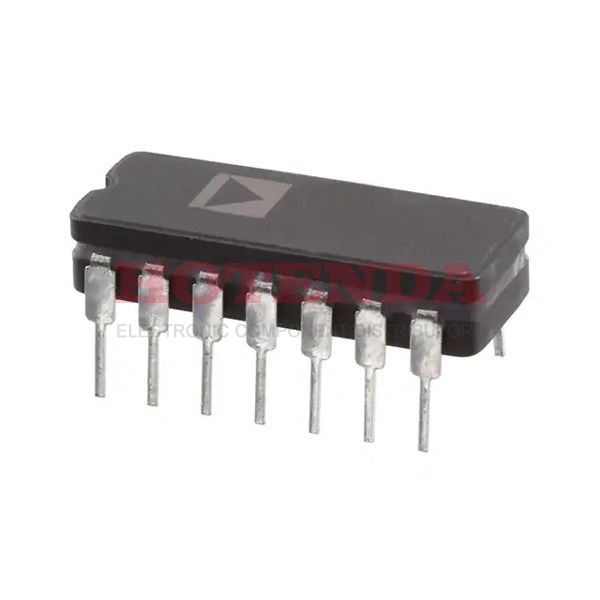

AD842SQ Overview
There is a 14-CDIP (0.300, 7.62mm) case in which the instrumentation amplifier is packaged. General Purpose-type instrumentation amplifiers are used in this application. A Tube case is used for delivering the op amp. The number of terminations approaches 14. Buffer amplifier has a total of 14 pins on it. It is important to remember that this op amp should be operated at a voltage of 15V volts. To be specific, this instrumentation amplifier is a type of Operational Amplifier. The buffer op amp includes 14 pins. The input offset voltage is 300μV. The mounting type that is recommended for this electrical part is Through Hole. According to the manufacturer, this buffer op amp works well at -55°C~125°C , which is a good operating temperature. It is possible to operate this buffer amplifier from a supply current of 13mA . It is recommended to keep the voltage gain at 99.08dB at all times. According to the specifications of the buffer op amp, the operating supply voltage is rated at 1. The operating supply voltage of the buffer op amp is rated at 15V. There is an 13mA quiescent current in linear amplifier.
AD842SQ Features
14 Pins
supply voltage of 15V
99.08dB voltage gain
AD842SQ Applications
There are a lot of Analog Devices Inc. AD842SQ Instrumentational OP Amps applications.
- Portable electronic products powered by batteries
- Active probe
- Broadcasting
- Integrator circuits
- Displayers for aircraft and air transportation control systems
- Radiation thermometry transducers
- Precision measurement
- Biopotential
- Weighing systems
- Differentiator circuits
