AD844SQ Overview

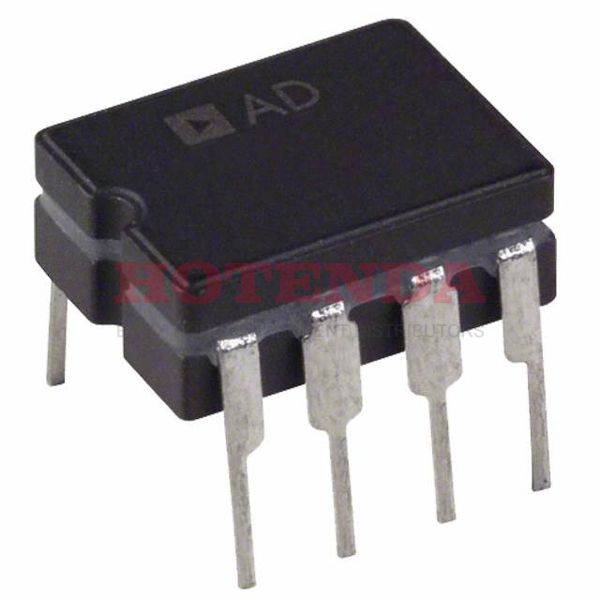

There is a 8-CDIP (0.300, 7.62mm) case in which the instrumentation amplifier is packaged. There are two types of operational amplifiers in this circuit. It comes in a Tube case, which protects instrumentation amplifier from damage during delivery. During the past two weeks, there have been close to 8 terminations. Linear amplifier has a total of 8 pins. This linear amplifier should be powered by an 15V battery. To be specific, this instrumentation amplifier is a type of Operational Amplifier. There are 8 pins on this chip. Regarding input offset voltage, buffer amplifier rates 50μV voltage. This electronic component is recommended to be mounted using the mounting type Through Hole. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -55°C~125°C . It is possible to operate this buffer amplifier from a supply current of 6.5mA . There are a total of 1 channels available on the op amps. The operating supply voltage of the buffer op amp is rated at 15V. The current is quiescent at 6.5mA.
AD844SQ Features
8 Pins
supply voltage of 15V
AD844SQ Applications
There are a lot of Analog Devices Inc. AD844SQ Instrumentational OP Amps applications.
- Displayers for aircraft and air transportation control systems
- Power generator
- Portable docking station
- Test equipment
- Integrator circuits
- Polarized electrodes
- High input resistance broadband
- Radar
- Differentiator circuits
- Power transmission
