AD847AQ Overview

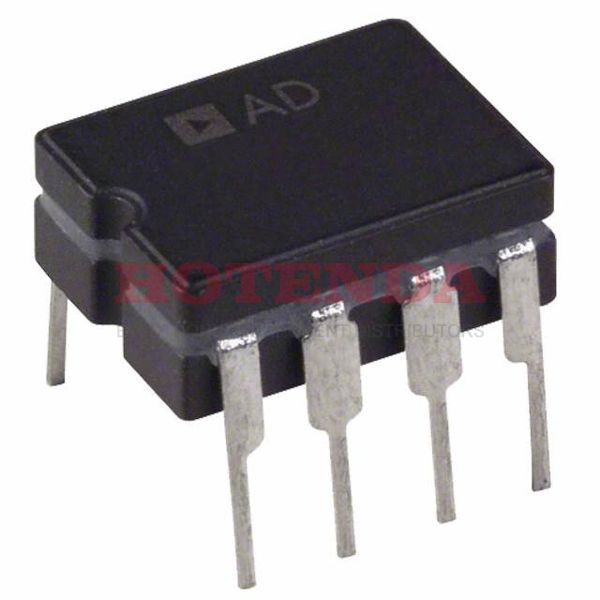

There is a 8-CDIP (0.300, 7.62mm) case in which the instrumentation amplifier is packaged. The instrumentation amplifier in this picture is of the General Purpose-type. It comes in a Tube case, which protects instrumentation amplifier from damage during delivery. The number of terminations is approaching the 8 mark. Buffer amplifier has a total of 8 pins on it. Please take in mind that op amp should be run at 5V. It should be noted that this type of buffer amplifier is exactly what is known as a Operational Amplifier device. A total of 8 pins are present on the instrumentation amplifier. Op amp rates 1mV as input offset voltage. It is recommended that this electronic component be mounted using the Through Hole mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -40°C~85°C . Using an 5.3mA supply current, this operational amplifier ics can be operated. Voltage gain should remain at 70.88dB. Instrumentation amplifier has 1 channels on it. Linear amplifier has a quiescent current of 4.8mA.
AD847AQ Features
8 Pins
supply voltage of 5V
70.88dB voltage gain
AD847AQ Applications
There are a lot of Analog Devices Inc. AD847AQ Instrumentational OP Amps applications.
- Medical imaging
- Subtraction operation circuits
- Proportional operation circuits
- High speed sample
- Digital cameras
- Measurements of Wheatstone bridge
- Large motor controllers
- Portable docking station
- Switching amplifier
- Comparator
