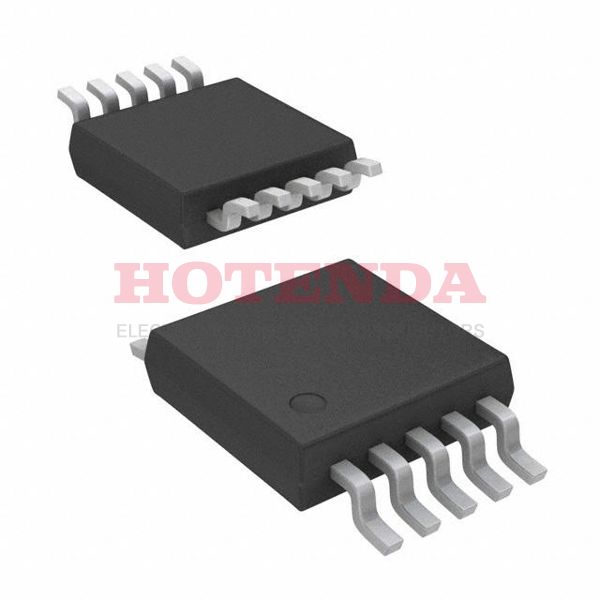

AD8553ARMZ-R2 Overview
Op amp is packaged in 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) case. An op amp of this type is a Instrumentation-type. Instrumentation amplifier is delivered in a Cut Tape (CT) case. There have been a total of 10 terminations over the past year. There are a total of 10 pins on this op amp. Please take in mind that op amp should be run at 5V. An 10-pin op amp ic is included in the package. Regarding input offset voltage, op amp rates 120μV. For this electrical component, Surface Mount is the recommended mounting type. According to the manufacturer, this buffer op amp works well at -40°C~85°C , which is a good operating temperature. It is possible to operate this buffer amplifier from a supply current of 1.1mA . A instrumentation amplifier like this has 1 circuits. One of the many advantages that this linear amplifier has, among many other things, is the fact that it outputs Rail-to-Rail signals. It is possible to count 1 elements on this buffer amplifier. The operating supply voltage of instrumentation amplifier is rated 5V voltage.
AD8553ARMZ-R2 Features
10 Pins
supply voltage of 5V
Output Type: Rail-to-Rail
AD8553ARMZ-R2 Applications
There are a lot of Analog Devices Inc. AD8553ARMZ-R2 Instrumentational OP Amps applications.
- High gain DC amplifier
- Blood pressure sensors
- Tablets
- pH (acidity)
- Power generator
- Commercial audio systems
- Automotive sensors
- ECG equipment
- Video data acquisition
- Computer workstations
