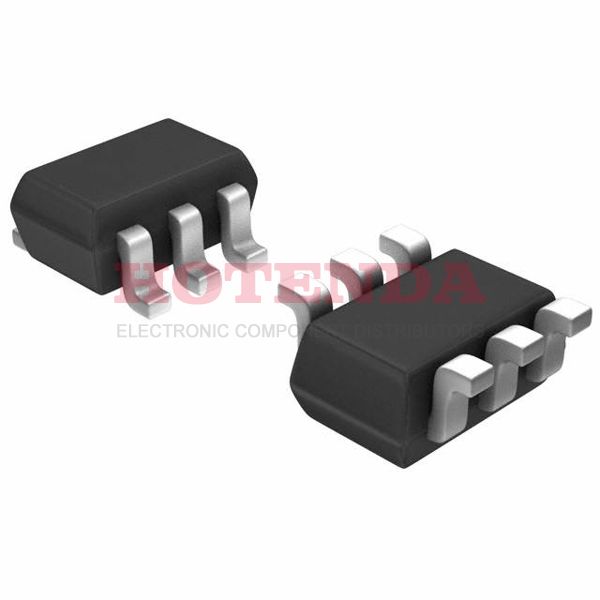

ADCMP601BKSZ-RL Overview
For convenience, it is packaged in 6-TSSOP, SC-88, SOT-363 .There is a CMOS, TTL output type for this comparator.Electronic comparator is shipped by Tape & Reel (TR) .The comparator has a total of 6 terminals.The electrical component here belongs to the Comparator family.The type of the chip can be classified as with Latch .Electronic comparator consists of 1 elements in total.Electronic comparator has 6 pins.The recommended mounting method is Surface Mount .Electronic comparator is recommended that you set the operating temperature to -40°C~125°C in order to prevent malfunctions.The comparator has a pin count of 6 .You can find more pin-to-pin solutions by searching ADCMP601 .As a result, this comparator displays a quiescent current of 4mA .Normally, the nominal supply current should be 3.5mA when using the device.There is sufficient power to run the device from 3/5V power supplies.You can input a maximum current of 5μA into this device.Comparator electronics is clear from the voltage formula that the voltage gain of the part is 85dB .
ADCMP601BKSZ-RL Features
CMOS, TTL output capability
with Latch IC
Employing 1 elements
Operates under -40°C~125°C
Quiescent Current: 4mA
Voltage Gain: 85dB
ADCMP601BKSZ-RL Applications
There are a lot of Analog Devices Inc.
ADCMP601BKSZ-RL linear comparators applications.
- Lithium ion battery monitoring
- Battery management and protection
- Current and voltage sensing
- Analog front end
- Power management
- Point of load regulators
- DC/DC and AC/DC power supplies
- System control and monitoring
- Wearable Devices
- Mobile Phones and Tablets
