Name: ADM101EARM
Brand: Hotenda
SKU: ADM101EARM
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Lifecycle Status	OBSOLETE (Last Updated: 4 weeks ago)
Contact Plating	Lead, Tin
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Number of Pins	10
Operating Temperature	-40°C~85°C
Packaging	Tube
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	10
ECCN Code	EAR99
Type	Transceiver
Subcategory	Line Driver or Receivers
Technology	BICMOS
Voltage - Supply	4.5V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Supply Voltage	5V
Terminal Pitch	0.5mm
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	ADM101
Pin Count	10
Operating Supply Voltage	5V
Power Supplies	5V
Operating Supply Current	1mA
Nominal Supply Current	2.5mA
Max Supply Current	2.5mA
Logic Function	Receiver, Transceiver
Data Rate	460Kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	1/1
Driver Number of Bits	1
Receiver Number of Bits	1
Duplex	Full
Receiver Hysteresis	200mV
Interface Standard	EIA-232
Number of Transceivers	1
ESD Protection	Yes
Receive Delay-Max	5000 ns
Simplex/Duplex	Full Duplex
Length	3mm
Width	3mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

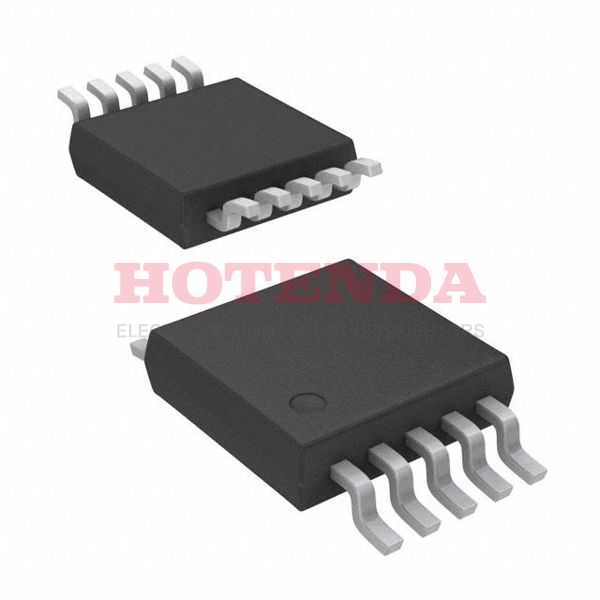

ADM101EARM Product Details

ADM101EARM Overview

An excellent driver IC for common LEDs thanks to its enhanced 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) package.Tube package is used for this receiver.It has proved to be a valuable component for a variety of applications since it is a Transceiver can transceiver.PCB or development board with Surface Mount-type connectors can accommodate this wide receiver.In terms of power supply, this differential driver utilizes 4.5V~5.5V.As many as 1/1 receivers/drivers are eligible for use on this electronic part.IC receiver has been designed primarily for applications operating at -40°C~85°C.Driver ICs with a supply voltage range of 5V can operate efficiently.For driving and receiving signals from data, this wide receiver has 10 terminations integrated.Transceiver comes with 10 standard pinouts that meet the market's requirements.With the part number ADM101 identifying the product type, temperature, package, etc., you can search with it to see more variants.The driver IC has improved power dissipation control.Using this ic receiver, you were able to achieve a resolution of 1 bits.In most cases, the receiver will be specified with a 1-bit resolution.This transceiver module is designed to operate from an input voltage supply of 5V.In this category, this rf transceiver module belongs to the Line Driver or Receivers subcategory.There is one driver IC that is designed to operate from a 5V power supply, and only one driver IC in total.ICs implement a total of 1 transceivers.Using a 1mA input voltage, this integrating circuit is capable of driving LEDs with an output voltage of 20 V.It is possible for this can transceiver to have mal-functions when its input current reaches or exceeds 2.5mA.
