OP249FZ Overview

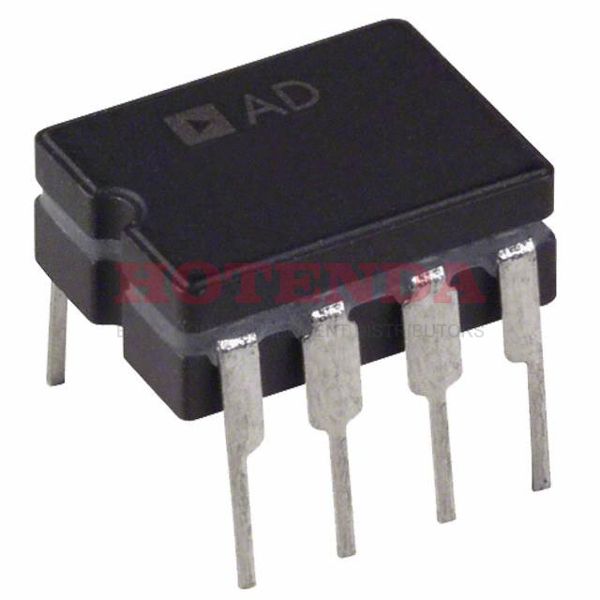

A 8-CDIP (0.300, 7.62mm) case is used to package the op amp. J-FET-type instrumentation amplifiers are used in this application. The case in which buffer amplifier is delivered is called a Tube case. It is estimated that there will be 8 terminations in the next few months. There are a total of 8 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 15V volts. It should be noted that this op amp is a type of Operational Amplifier device. There are 8 pins on this chip. In terms of the input offset voltage, instrumentation amplifier rates at 750μV. It is recommended that this electronic component be mounted using the Through Hole mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -40°C~85°C . An 7mA volt supply current is needed for this linear amplifier to operate. There should be no change in the voltage gain. There are 2 channels on the operational amplifiers. There is a quiescent current of 3.5mA in this operational amplifier circuit.
OP249FZ Features
8 Pins
supply voltage of 15V
121.58dB voltage gain
OP249FZ Applications
There are a lot of Analog Devices Inc.
OP249FZ Instrumentational OP Amps applications.
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
