OP27GJZ Overview

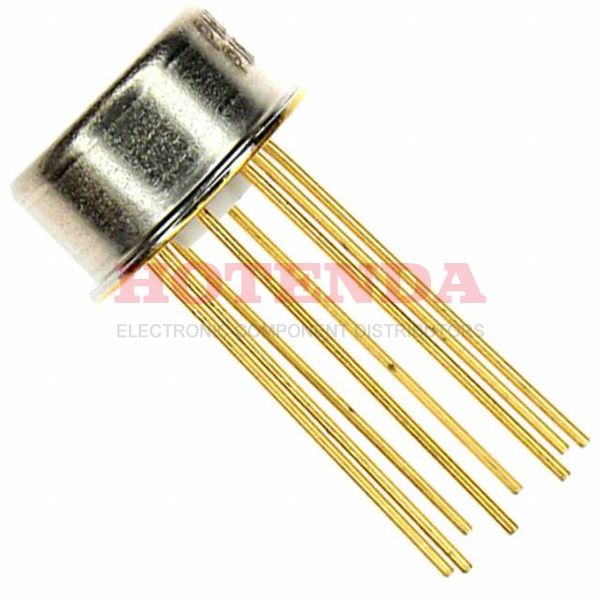

Op amp is packaged in TO-99-8 Metal Can case. Op amps are General Purpose types of amplifier on the chip. Instrumentation amplifier is delivered in a Bulk case. Linear amplifier includes 8 pins. Regarding input offset voltage, buffer amplifier rates 25μV voltage. Through Hole is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -40°C~85°C. Operational amplifier can operate supply current at 5.7mA. The voltage gain should stay at 123.52dB. There are 1 circuits on op amps. Instrumentation amplifier has 1 channels on it. It should not lower than -55°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 125°C. Op amp has total of 1 elements. With regard tp supply voltage, op amp is used under 22V. To keep the buffer amps' supply voltage higher than -22V. Conduct linear amplifier under the dual suuply voltage of 22V. Linear amplifier has a quiescent current of 5.7mA. There are 1 amplifiers on it.
OP27GJZ Features
123.52dB voltage gain
OP27GJZ Applications
There are a lot of Analog Devices Inc.
OP27GJZ Instrumentational OP Amps applications.
- Proportional operation circuits
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
