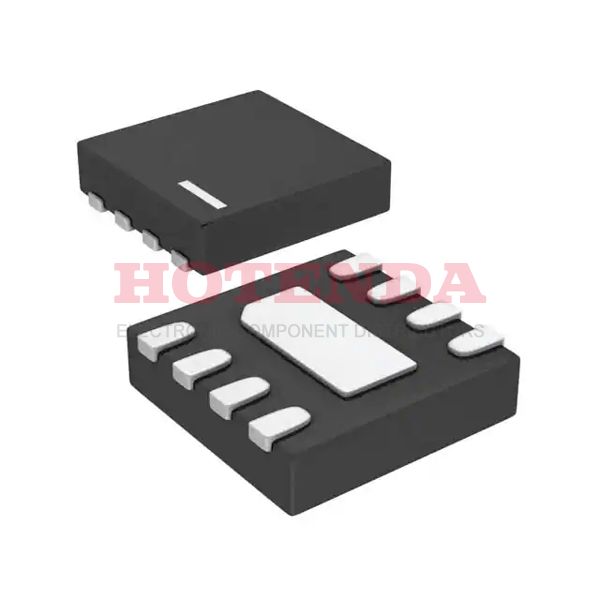

LTC6247IKC#TRPBF Overview
There are 8 pins on this chip. In terms of the input offset voltage, instrumentation amplifier rates at 100μV. An 1.25mA volt supply current is needed for this linear amplifier to operate. There should be no change in the voltage gain. On this instrumentation amplifier, there are 2 circuits that are connected together. In order for op amp to function properly, the temperature should not be lower than -40°C degrees Celsius. Instrumentation amplifier should only be used at temperatures up to 85°C. There are a total of 2 elements in this linear amplifier. I would like to point out that this electrical component is capable of working from a voltage below 5.25V as far as the power supply is concerned. As a general rule, it is advisable to keep the op amp's supply voltage above 2.5V at all times.
LTC6247IKC#TRPBF Features
93.06dB voltage gain
LTC6247IKC#TRPBF Applications
There are a lot of Analog Devices, Inc.
LTC6247IKC#TRPBF Instrumentational OP Amps applications.
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
