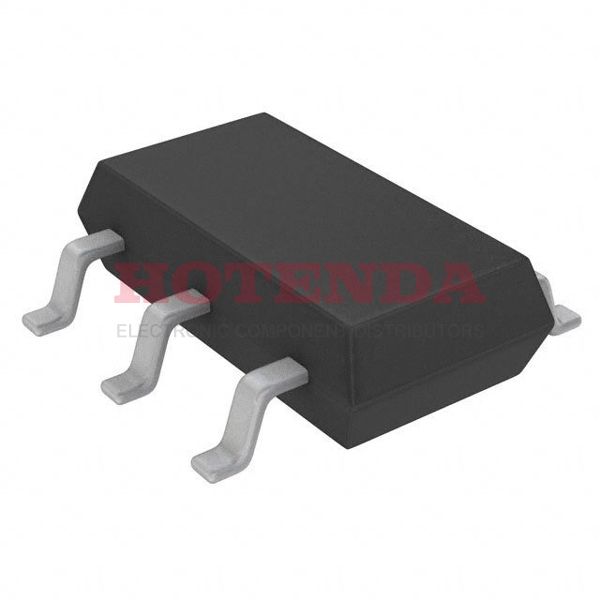

LTC6993HS6-1#TR Description
The LTC6993HS6-1#TR is a monostable multivibrator (also known as a “one-shot” pulse generator) with a programmable pulse width of 1µs to 33.6 seconds. The LTC6993HS6-1#TR is part of the TimerBlox® family of versatile silicon timing devices. A single resistor, RSET, programs an internal master oscillator frequency, setting the LTC6993’s time base. The output pulse width is determined by this master oscillator and an internal clock divider, NDIV, programmable to eight settings from 1 to 221.
LTC6993HS6-1#TR Features
Pulse Width Range: 1µs to 33.6 Seconds
Configured with 1 to 3 Resistors
Configurable for Positive or Negative Output Pulse
Fast Recovery Time
2.25V to 5.5V Single Supply Operation
70µA Supply Current at 10µs Pulse Width
500µs Start-Up Time
CMOS Output Driver Sources/Sinks 20mA
–55°C to 125°C Operating Temperature Range
LTC6993HS6-1#TR Applications
Watchdog Timer
Frequency Discriminators
Missing Pulse Detection
Envelope Detection
High Vibration, High Acceleration Environments
Portable and Battery-Powered Equipment
