Name: 121462VX778
Brand: APEM Inc.
SKU: 121462VX778
Price: 213.75000 USD
Availability: InStock

new

121462VX778

Manufacturer part number:121462VX778

Manufacturer:APEM Inc.

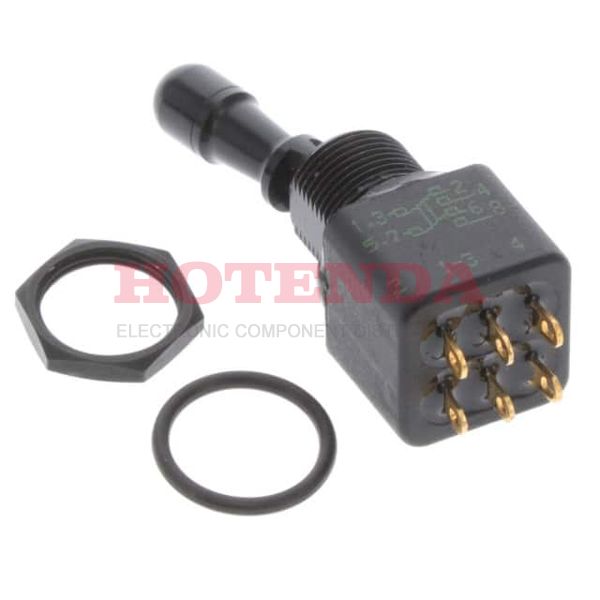

Description:Switch Toggle ON ON DPDT Locking Lever Solder Lug 4A 250VAC 28VDC Panel Mount with Threads

Case Package:SOT-23

Datasheet:121462VX778 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Silver
Contact Plating	Gold
Mount	Panel
Mounting Type	Panel Mount
Insulation Material	DIALLYL PHTHALATE
Actuator Material	Brass, Chrome Plated
Operating Temperature	-40°C~85°C
Packaging	Bulk
Series	12000
Feature	Epoxy Sealed Terminals
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Voltage - Rated DC	30V
Current Rating (Amps)	4A AC/DC
Orientation	Straight
Current Rating	4A
Termination Style	Solder Lug
Voltage - Rated AC	125V
Body Length or Diameter	15.9766mm
Body Breadth	15.9766 mm
Actuator Type	Locking Lever
Circuit	DPDT
Switch Function	On-On
Panel Cutout Dimensions	Circular - 12.50mm Dia
Contact Resistance	10mOhm
Insulation Resistance	1000000000Ohm
Contact Current(DC)-Max	4A
Max Voltage Rating (AC)	250V
Dielectric Withstanding Voltage	2000VRMS V
Electrical Life	50,000 Cycles
Throw Configuration	DP, DPDT
Illumination	Non-Illuminated
Max Voltage Rating (DC)	28V
Switch Type	TOGGLE SWITCH
Illumination Type	Illuminated, Non-Illuminated
Bushing Thread	15/32-32
Contact (DC) Max Rating R Load	[email protected]
Bushing Length	0.409 inch
Body Height	15.0876mm
Length - Termination	0.161 inch
Actuator Length	19.40mm
RoHS Status	ROHS3 Compliant

121462VX778 Product Details

Description: The APEM 121462VX778 Toggle Switch is a double pole double throw (DPDT) switch with a locking lever and solder lug terminals. It is designed for panel mounting with threads and is rated for 4A at 250VAC and 28VDC.

Features:
- DPDT switch with locking lever
- Solder lug terminals
- Rated for 4A at 250VAC and 28VDC
- Panel mount with threads

Applications: The APEM 121462VX778 Toggle Switch is suitable for a wide range of applications, including industrial control, automotive, and consumer electronics. It can be used to control the flow of electricity in a circuit, allowing for the switching of multiple circuits at once.
