12146AK

12146AK

12146AK

APEM Inc.

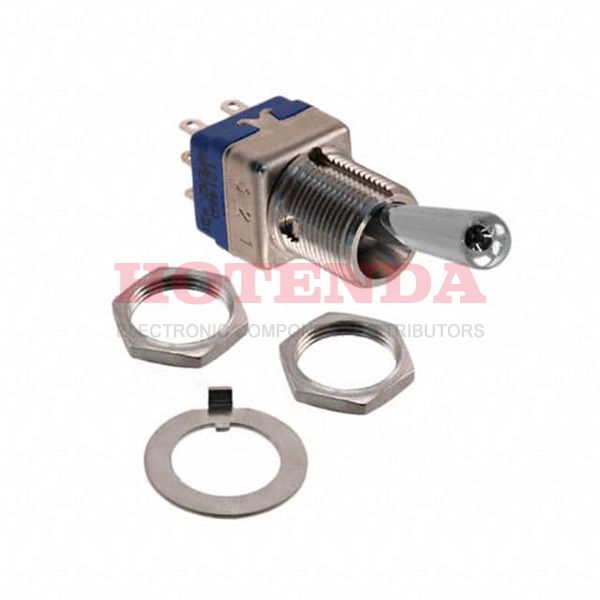

SWITCH TOGGLE DPDT 4A 125V

SOT-23

12146AK Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 9 Weeks
Mount Panel
Mounting Type Panel Mount
Insulation Material DIALLYL PHTHALATE
Actuator MaterialBrass, Chrome Plated
Center Contact Material SILVER
End Contact Material SILVER
Operating Temperature-40°C~85°C
PackagingBulk
Series 12000
Feature Epoxy Sealed Terminals, Front Panel Sealing
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Voltage - Rated DC 30V
Current Rating (Amps) 4A AC/DC
Current Rating4A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit DPDT
Switch FunctionOn-On
Panel Cutout Dimensions Circular - 12.00mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance1000000000Ohm
Contact Current(DC)-Max 4A
Dielectric Withstanding Voltage 2500VAC V
Electrical Life 50,000 Cycles
Illumination Non-Illuminated
Switch TypeTOGGLE SWITCH
Illumination Type Illuminated, Non-Illuminated
Bushing Thread15/32-32
Bushing Length 0.429 inch
Body Height 13.6906mm
Length - Termination 0.196 inch
Actuator Length 17.30mm
RoHS StatusROHS3 Compliant
In-Stock:177 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$44.784757$44.784757
10$42.249771$422.49771
100$39.858274$3985.8274
500$37.602146$18801.073
1000$35.473722$35473.722

12146AK Product Details

The APEM 12146AK Toggle Switch is a double pole double throw (DPDT) switch designed for use in a variety of applications. It has a 4A current rating and a 125V voltage rating, making it suitable for use in low-voltage applications. It features a rugged construction with a black plastic body and a silver-plated brass contact. The switch is designed to be used in a variety of applications, including lighting, motor control, and audio/video equipment. It is also suitable for use in industrial and commercial applications. The switch is easy to install and use, and it is designed to provide reliable performance and long-term durability.
