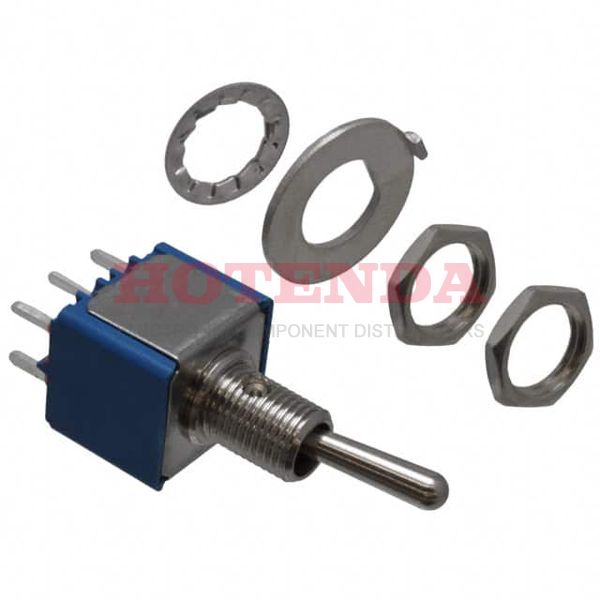

Name: 5246AB
Brand: APEM Inc.
SKU: 5246AB
Price: 8.96000 USD
Availability: InStock

new

5246AB

Manufacturer part number:5246AB

Manufacturer:APEM Inc.

Description:SWITCH TOGGLE DPDT 6A 125V

Case Package:SOT-23

Datasheet:5246AB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Silver
Mount	Panel
Mounting Type	Panel Mount
Housing Material	Stainless Steel
Actuator Material	Brass, Nickel Plated
Operating Temperature	-40°C~85°C
Packaging	Tray
Series	5000
JESD-609 Code	e4
Feature	Epoxy Sealed Terminals
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	PC Pin
ECCN Code	EAR99
HTS Code	8536.50.90.65
Voltage - Rated DC	30V
Current Rating (Amps)	6A AC 4A DC
Packing Method	BULK
Orientation	Straight
Depth	12mm
Current Rating	4A
Termination Style	PC Pin
Voltage - Rated AC	125V
Actuator Type	Standard Round
Circuit	DPDT
Switch Function	On-On
Panel Cutout Dimensions	Circular - 6.50mm Dia
Contact Resistance	10mOhm
Contact Current(DC)-Max	4A
Sealing	EPOXY TERMINAL SEALED
Max Voltage Rating (AC)	250V
Max Current Rating	6A
Electrical Life	50,000 Cycles
Illumination	Non-Illuminated
Max Voltage Rating (DC)	30V
Mechanical Life	100000 cycles
Switch Type	TOGGLE SWITCH
Illumination Type	Illuminated, Non-Illuminated
Bushing Thread	1/4-40
Contact Current(AC)-Max	6A
Contact (AC) Max Rating R Load	6A@125VAC
Contact (DC) Max Rating R Load	4A@30VDC
Length	13.2mm
Body Height	12.3mm
Actuator Length	10.50mm
RoHS Status	ROHS3 Compliant

5246AB Product Details

The APEM Toggle Switches 5246AB is a double pole double throw (DPDT) switch designed for a variety of applications. It has a 6A current rating and a 125V voltage rating, making it suitable for a wide range of applications. The switch is designed with a toggle actuator, allowing for easy operation and a long life. It is also designed with a snap-in mounting system, making it easy to install and remove.

Features of the APEM Toggle Switches 5246AB include a high-quality construction, a long life, and a reliable performance. The switch is designed with a durable plastic housing and a corrosion-resistant contact system. It also has a high-temperature rating, making it suitable for use in high-temperature environments.

Applications of the APEM Toggle Switches 5246AB include industrial control systems, lighting systems, and motor control systems. It is also suitable for use in a variety of other applications, such as audio and video equipment, security systems, and medical equipment.
