Name: 636H/2
Brand: APEM Inc.
SKU: 636H/2
Price: 10.02000 USD
Availability: InStock

new

636H/2

Manufacturer part number:636H/2

Manufacturer:APEM Inc.

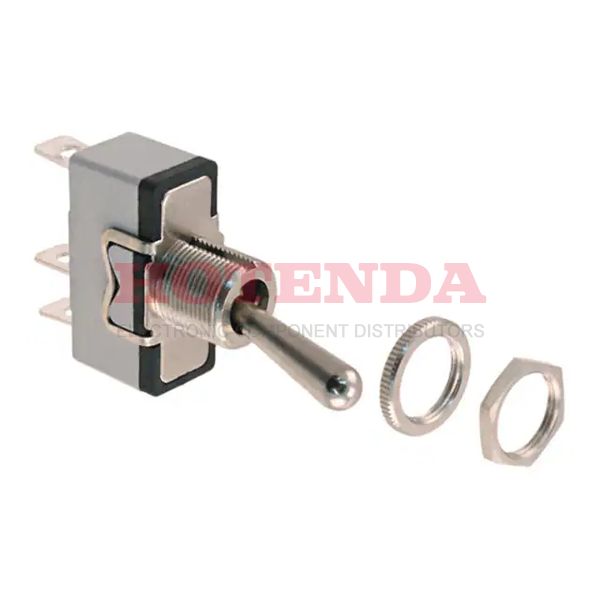

Description:APEM 636H/2Toggle Switch, 600H Series, Non Illuminated, SPDT, On-On, Panel, 15 A

Case Package:SOT-23

Datasheet:636H/2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Silver
Mount	Panel
Mounting Type	Panel Mount
Package / Case	Metal
Number of Pins	1
Housing Material	Polyester
Actuator Material	Brass, Nickel Plated
Operating Temperature	-20°C~55°C
Packaging	Bulk
Series	600H
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
HTS Code	8536.50.90.65
Voltage - Rated DC	12V
Current Rating (Amps)	15A AC
Orientation	Straight
Current Rating	15A
Termination Style	Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC	125V
Actuator Type	Standard Round
Circuit	SPDT
Switch Function	On-On
Panel Cutout Dimensions	Circular - 12.20mm Dia
Contact Resistance	10mOhm
Insulation Resistance	1GOhm
Sealing	DUST PROOF; WATER PROOF
Max Voltage Rating (AC)	400V
Max Current Rating	15A
Electrical Life	10,000 Cycles
Throw Configuration	SP, SPDT
Illumination	Non-Illuminated
Max Voltage Rating (DC)	24V
Switch Type	TOGGLE SWITCH
Contact Current Rating	15A
Illumination Type	Illuminated, Non-Illuminated
Bushing Thread	M12 x 0.75
Switching Current	15A
Height	15mm
Length	29.5mm
Width	14mm
Actuator Length	17.50mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

636H/2 Product Details

The APEM 636H/2 Toggle Switch is a reliable and durable switch designed for a variety of applications. This non-illuminated switch is part of the 600H Series and features a single pole double throw (SPDT) configuration with an on-on function. It is designed for panel mounting and is rated for up to 15 amps. The switch is constructed with a rugged die-cast housing and a silver-plated contact system for superior performance and long life. It is also designed with a positive detent action for a secure and reliable connection. The 636H/2 Toggle Switch is a great choice for a variety of applications and is sure to provide reliable performance for years to come.
