Name: 639H/2
Brand: APEM Inc.
SKU: 639H/2
Price: 10.20000 USD
Availability: InStock

new

639H/2

Manufacturer part number:639H/2

Manufacturer:APEM Inc.

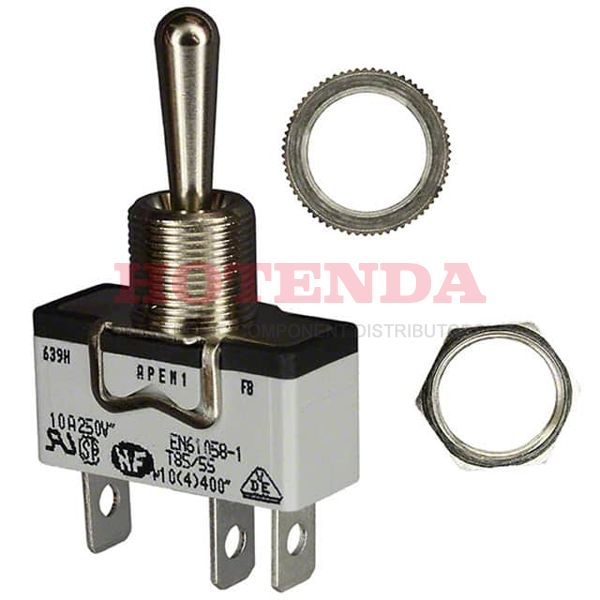

Description:APEM 639H/2Toggle Switch, 600H Series, Non Illuminated, SPDT, On-Off-On, Panel, 15 A

Case Package:SOT-23

Datasheet:639H/2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Silver
Mount	Panel
Mounting Type	Panel Mount
Package / Case	Metal
Number of Pins	1
Housing Material	Polyester
Actuator Material	Brass, Nickel Plated
Operating Temperature	-20°C~55°C
Packaging	Bulk
Series	600H
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
HTS Code	8536.50.90.65
Voltage - Rated DC	24V
Current Rating (Amps)	10A AC
Orientation	Straight
Depth	14mm
Current Rating	15A
Termination Style	Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC	125V
Actuator Type	Standard Round
Circuit	SPDT
Switch Function	On-Off-On
Panel Cutout Dimensions	Circular - 12.20mm Dia
Contact Resistance	10mOhm
Insulation Resistance	1GOhm
Sealing	DUST PROOF; WATER PROOF
Max Voltage Rating (AC)	400V
Max Current Rating	15A
Electrical Life	6,000 Cycles
Illumination	Non-Illuminated
Switch Type	TOGGLE SWITCH
Contact Current Rating	15A
Illumination Type	Illuminated, Non-Illuminated
Bushing Thread	M12 x 0.75
Switching Current	10A
Height	15mm
Length	29.5mm
Width	14mm
Actuator Length	17.50mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

639H/2 Product Details

Description:
The APEM 639H/2 Toggle Switch is a non-illuminated, SPDT (Single Pole Double Throw) On-Off-On switch designed for panel mounting. It has a maximum current rating of 15 A and is part of the 600H Series.

Features:
• Non-illuminated
• SPDT (Single Pole Double Throw) On-Off-On
• Panel mounting
• Maximum current rating of 15 A
• Part of the 600H Series

Applications:
The APEM 639H/2 Toggle Switch is suitable for a wide range of applications, including industrial, automotive, and consumer electronics. It can be used for controlling power, switching circuits, and selecting between two different functions.
