Name: 641H/2
Brand: APEM Inc.
SKU: 641H/2
Price: 14.05000 USD
Availability: InStock

new

641H/2

Manufacturer part number:641H/2

Manufacturer:APEM Inc.

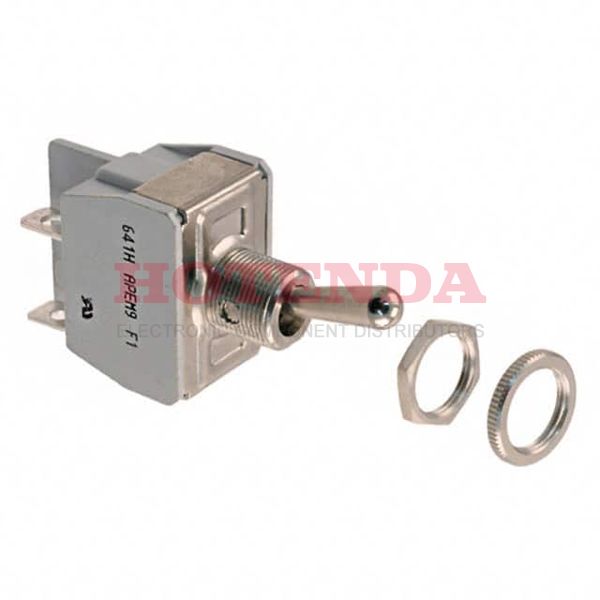

Description:APEM 641H/2Toggle Switch, 600H Series, Non Illuminated, DPST, Off-On, Panel, 15 A

Case Package:SOT-23

Datasheet:641H/2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Silver
Mount	Panel
Mounting Type	Panel Mount
Package / Case	Metal
Number of Pins	2
Housing Material	POLYESTER
Actuator Material	Brass, Nickel Plated
Operating Temperature	-20°C~55°C
Packaging	Bulk
Series	600H
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Voltage - Rated DC	24V
Current Rating (Amps)	15A AC
Orientation	Straight
Depth	21.5mm
Current Rating	15A
Termination Style	Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC	125V
Actuator Type	Standard Round
Circuit	DPST
Switch Function	On-Off
Panel Cutout Dimensions	Circular - 12.20mm Dia
Contact Resistance	10mOhm
Insulation Resistance	1GOhm
Max Voltage Rating (AC)	400V
Max Current Rating	15A
Electrical Life	10,000 Cycles
Illumination	Non-Illuminated
Max Voltage Rating (DC)	24V
Switch Type	TOGGLE SWITCH
Contact Current Rating	15A
Illumination Type	Illuminated, Non-Illuminated
Bushing Thread	M12 x 0.75
Switching Current	15A
Height	21.5mm
Length	29.7mm
Actuator Length	17.50mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

641H/2 Product Details

Description: The APEM 641H/2 Toggle Switch is a non-illuminated, double pole single throw (DPST) switch designed for panel mounting. It has an Off-On function and is rated for 15A at 125/250VAC.

Features:
• Non-illuminated
• DPST, Off-On function
• Panel mount
• 15A rating at 125/250VAC
• UL, CSA, and VDE approved

Applications: The APEM 641H/2 Toggle Switch is suitable for a wide range of applications, including industrial, commercial, and residential. It can be used for controlling motors, lighting, and other electrical equipment. It is also suitable for use in hazardous locations.
