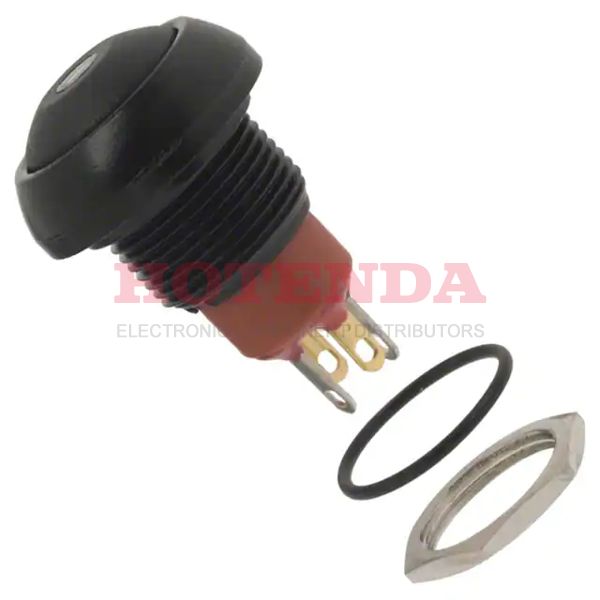

IPR3SAD2L0S datasheet pdf and Pushbutton Switches product details from APEM Inc. stock available on our website
SOT-23
IPR3SAD2L0S Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
5 Weeks
Contact Material
Gold, Silver
Contact Plating
Gold
Mount
Front, Panel
Mounting Type
Panel Mount, Front
Housing Material
Thermoplastic
Actuator Material
Polyamide
Operating Temperature
-40°C~125°C
Packaging
Bulk
Series
IP
Feature
Tactile Feedback
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Solder
ECCN Code
EAR99
Type
Standard, Illuminated
Voltage - Rated DC
50V
Current Rating (Amps)
500mA AC 200mA DC
Orientation
Straight
Ingress Protection
IP67 - Dust Tight, Waterproof
Current Rating
200mA
Termination Style
Solder Lug
Voltage - Rated AC
48V
Actuator Type
Round, Button
Circuit
SPST-NO
Switch Function
Off-Mom
Panel Cutout Dimensions
Circular - 13.60mm Dia
Contact Resistance
100mOhm
Color - Actuator/Cap
Black
Contact Current(DC)-Max
0.2A
Illumination Voltage (Nominal)
2VDC
Illumination Type, Color
LED, Red
Sealing
EPOXY
Electrical Life
500,000 Cycles
Number of Poles
1
Throw Configuration
SPST
Max Voltage Rating (DC)
24V
Mechanical Life
1e+06 cycles
Illumination Type
LED
Illumination Color
Red
Contact Current(AC)-Max
0.2A
Contact (AC) Max Rating R Load
0.2A@250VAC
Contact (DC) Max Rating R Load
0.2A@50VDC
Contact Function
OFF-(ON)
Bushing Length
0.267 inch
Body Height
6.3754mm
Length - Termination
0.342 inch
Actuator Length
2mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Ratings
Dust Tight, IP67, Waterproof
In-Stock:311 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$20.049263
$20.049263
10
$18.914400
$189.144
100
$17.843773
$1784.3773
500
$16.833748
$8416.874
1000
$15.880894
$15880.894
IPR3SAD2L0S Product Details
APEM Pushbutton Switches IPR3SAD2L0S are single-pole single-throw (SPST) pushbutton switches designed for low-current applications. They feature a 0.5A rating at 48V and are suitable for a wide range of applications.
Features of the APEM Pushbutton Switches IPR3SAD2L0S include a long-life mechanical design, a low-profile design, and a wide range of actuator styles. The switches are also RoHS compliant and UL approved.
Applications of the APEM Pushbutton Switches IPR3SAD2L0S include industrial control panels, consumer electronics, and automotive applications. They are also suitable for use in medical equipment, security systems, and other low-current applications.
