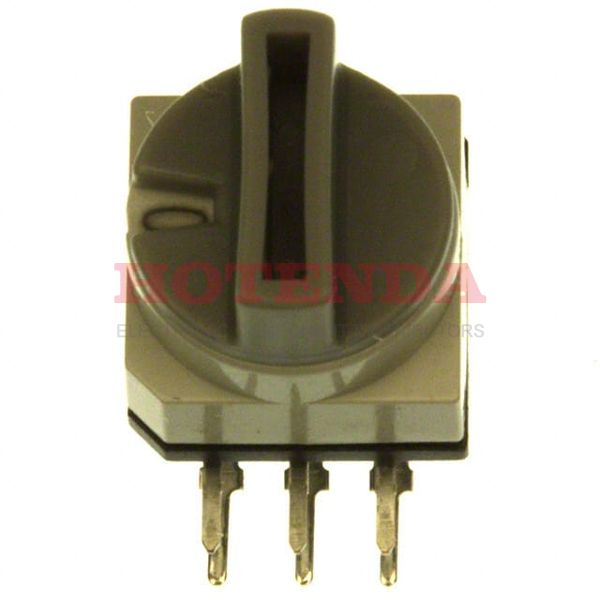

Name: PT65526L254
Brand: APEM Inc.
SKU: PT65526L254
Availability: InStock

new-10%

PT65526L254

Manufacturer part number:PT65526L254

Manufacturer:APEM Inc.

Description:SW ROTARY DIP OCTAL 150MA 24V

Case Package:SOT-23

Datasheet:PT65526L254 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Body Material	Thermoplastic
Terminal Material	BRASS
Operating Temperature	-20°C~70°C
Packaging	Tube
Series	PT65
JESD-609 Code	e4
Feature	Sealed - Flux Protection
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Number of Positions	8
Voltage - Rated	24VDC
Additional Feature	O-RING Si RUBBER ACTUATOR SEAL
Current Rating (Amps)	150mA
Pitch	0.100 2.54mm Full
Contact Finish	Gold
Termination Style	PC Pin
Actuator Type	Rotary with Knob
Circuit	Octal
Insulation Resistance	100000000Ohm
Contact Current(DC)-Max	0.4A
Sealing	MOLDED
Contact Voltage(DC)-Max	24V
Electrical Life	10000 Cycle(s)
Mechanical Life	10,000 Cycles
Switch Type	ROTARY CODED SWITCH
Contact Timing	BREAK-BEFORE-MAKE
Index Angle	45 deg
Number of Switch Sections	1
PCB Hole Count	6
Contact Function	ON-OFF
Washable	Yes
Actuator Level	Raised
Solderability	WAVE
Washability	SOLVENT
Length	0.393 10.00mm
Body Height	10mm
Height Above Board	0.394 10.00mm
RoHS Status	ROHS3 Compliant

PT65526L254 Product Details

The APEM PT65526L254 is a rotary DIP switch with 8 positions. It is designed for use in a variety of applications, including industrial, automotive, and consumer electronics. The switch is rated for a maximum current of 150mA and a maximum voltage of 24V. It features a low profile design, making it suitable for use in tight spaces. The switch is also RoHS compliant and UL approved.

Features of the APEM PT65526L254 include a long life cycle of up to 10,000 cycles, a high contact rating of up to 24V, and a low contact resistance of less than 100mΩ. The switch also features a high insulation resistance of up to 100MΩ and a high dielectric strength of up to 500V. The switch is also designed to be dust and moisture resistant.

Applications of the APEM PT65526L254 include industrial control systems, automotive electronics, and consumer electronics. It can be used to control a variety of functions, such as power, lighting, and audio. The switch is also suitable for use in a variety of environments, including wet and dusty conditions.
