Q8P3BXXR12E

Q8P3BXXR12E

Q8P3BXXR12E

APEM Inc.

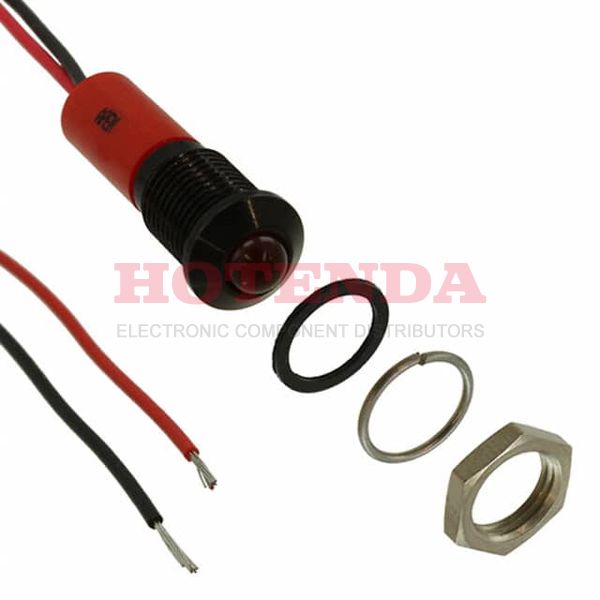

LED PM INDICATOR PROMINENT RED

SOT-23

Q8P3BXXR12E Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 9 Weeks
Mount Panel
Panel Cutout Shape Round
Series Q Series
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Wire Leads
Type LED
Voltage - Rated 12V
Additional FeatureUL RECOGNIZED
HTS Code8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress ProtectionIP67
Current Rating20mA
Termination Style Wire Leads - 7.87 (200.00mm)
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Panel Cutout Dimensions 0.31 (7.87mm)
Configuration SINGLE
Viewing Angle100°
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity100 mcd
Millicandela Rating 100mcd
Lens Transparency Diffused
Overall Height 5.1mm
Lamp Color Red
Length 22.5mm
RoHS StatusROHS3 Compliant
Ratings DC
In-Stock:504 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$13.77000$13.77
10$13.18500$131.85
25$10.25520$256.38
100$8.79000$879
250$8.35052$2087.63
500$7.91100$3955.5

Q8P3BXXR12E Product Details

Description: The APEM Panel Indicators, Pilot Lights Q8P3BXXR12E are LED panel indicators with a prominent red light. They are designed to be used in a variety of applications, such as industrial control panels, automotive dashboards, and other applications requiring a bright, visible indicator. The indicators are rated for 12V operation and feature a long life expectancy of up to 50,000 hours.

Features:
- Bright, visible red LED indicator
- Rated for 12V operation
- Long life expectancy of up to 50,000 hours
- Easy to install and maintain
- Low power consumption

Applications:
- Industrial control panels
- Automotive dashboards
- Machine status indicators
- Alarm systems
- Security systems
- Automation systems
