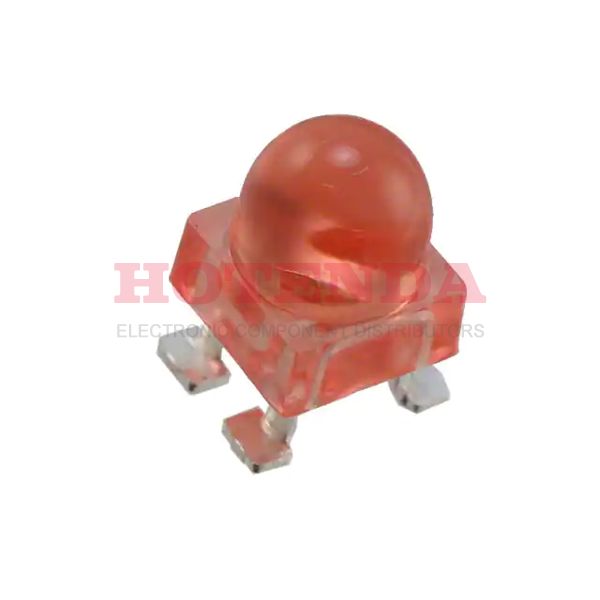

Name: ALMD-EG3D-VX002
Brand: Broadcom Limited
SKU: ALMD-EG3D-VX002
Availability: InStock

new-10%

ALMD-EG3D-VX002

Manufacturer part number:ALMD-EG3D-VX002

Manufacturer:Broadcom Limited

Description:ALMD-EG3D-VX002 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website

Case Package:SOT-23

Datasheet:ALMD-EG3D-VX002 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Plating	Silver
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Number of Pins	4
Packaging	Tape & Reel (TR)
Published	2009
Size / Dimension	4.20mm Lx4.20mm W
Part Status	Active
Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Number of Terminations	4
ECCN Code	EAR99
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Color	Red
Subcategory	Visible LEDs
Power Rating	120mW
Max Power Dissipation	120mW
Number of Functions	1
Depth	4.2mm
Base Part Number	ALMD-EG3D
Number of Elements	1
Configuration	Standard
Power Dissipation	120mW
Voltage - Forward (Vf) (Typ)	2.1V
Viewing Angle	30°
Optoelectronic Device Type	SINGLE COLOR LED
Forward Current	20mA
Lens Style	Round with Domed Top
Luminous Intensity	9.3 cd
Millicandela Rating	6750mcd
Lens Transparency	Clear
Wavelength - Peak	634nm
Reverse Voltage	5V
Wavelength - Dominant	626nm
Height	7mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ALMD-EG3D-VX002 Product Details

The Broadcom LED Indication - Discrete ALMD-EG3D-VX002 is a high-performance LED designed for a variety of applications. It features a red light output of 626 nm, a voltage of 2.1 V, a current of 20 mA, a luminous intensity of 9.3 cd, and a T-1 3/4 package size. This LED is ideal for use in automotive, industrial, and consumer applications.

Features of the Broadcom LED Indication - Discrete ALMD-EG3D-VX002 include a long life span, low power consumption, and a wide viewing angle. It is also RoHS compliant and has a high reliability rating.

Applications of the Broadcom LED Indication - Discrete ALMD-EG3D-VX002 include automotive lighting, industrial lighting, and consumer lighting. It can also be used in a variety of other applications such as medical equipment, security systems, and signage.
