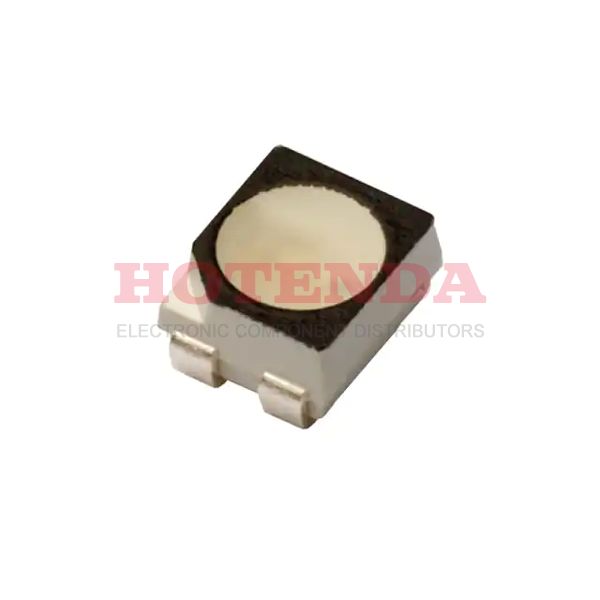

ASMB-MTB0-0A3A2 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website
SOT-23
ASMB-MTB0-0A3A2 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Contact Plating
Silver
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
4-PLCC
Number of Pins
4
Packaging
Tape & Reel (TR)
Published
2013
Size / Dimension
3.20mm Lx2.80mm W
JESD-609 Code
e4
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Color
Red, Green, Blue (RGB)
Configuration
Common Anode
Voltage - Forward (Vf) (Typ)
2.1V Red 3.1V Green 3.1V Blue
Viewing Angle
115°
Optoelectronic Device Type
TRIPLE COLOR LED
Current - Test
20mA Red 20mA Green 20mA Blue
Lens Style
Round with Flat Top
Lens Size
2.40mm Dia
Luminous Intensity
350 mcd
Millicandela Rating
540mcd Red, 1600mcd Green, 350mcd Blue
Lens Transparency
Diffused
Wavelength - Peak
634nm Red 522nm Green 465nm Blue
Lens Color
White
Wavelength - Dominant
625nm Red 530nm Green 470nm Blue
Number of LEDs
3
Height
1.9mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
In-Stock:3742 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
ASMB-MTB0-0A3A2 Product Details
The Broadcom LED Indication - Discrete ASMB-MTB0-0A3A2 is a high-performance LED chip designed for a variety of applications. This chip features a tri-color LED with blue, green, and red wavelengths of 465nm, 522nm, and 634nm respectively. The chip is housed in a 4-pin PLCC-4 package, making it easy to install and use. The chip is designed to provide a bright and consistent light output, making it ideal for a variety of applications. The chip is also designed to be energy efficient, helping to reduce power consumption and costs. The Broadcom LED Indication - Discrete ASMB-MTB0-0A3A2 is a great choice for any application that requires a reliable and efficient LED solution.
