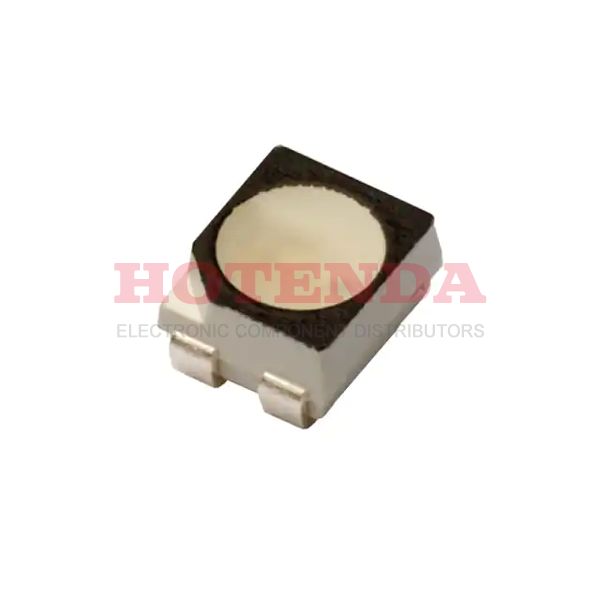

ASMB-MTB1-0A3A2 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website
SOT-23
ASMB-MTB1-0A3A2 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Contact Plating
Silver
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
4-PLCC
Number of Pins
4
Manufacturer Package Identifier
ASMB-MTB1-0A3A2
Packaging
Tape & Reel (TR)
Published
2013
Size / Dimension
3.20mm Lx2.80mm W
JESD-609 Code
e4
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Color
Red, Green, Blue (RGB)
Max Power Dissipation
90mW
Configuration
Common Anode
Voltage - Forward (Vf) (Typ)
2.1V Red 3.1V Green 3.1V Blue
Viewing Angle
115°
Optoelectronic Device Type
TRIPLE COLOR LED
Current - Test
20mA Red 20mA Green 20mA Blue
Lens Style
Round with Flat Top
Lens Size
2.40mm Dia
Luminous Intensity
350 mcd
Millicandela Rating
540mcd Red, 1600mcd Green, 350mcd Blue
Lens Transparency
Diffused
Wavelength - Peak
634nm Red 522nm Green 465nm Blue
Lens Color
White
Wavelength - Dominant
625nm Red 530nm Green 470nm Blue
Number of LEDs
3
Max Junction Temperature (Tj)
110°C
Height
2.1mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
In-Stock:4291 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.067280
$1.06728
10
$1.006868
$10.06868
100
$0.949875
$94.9875
500
$0.896109
$448.0545
1000
$0.845386
$845.386
ASMB-MTB1-0A3A2 Product Details
Description: The Broadcom ASMB-MTB1-0A3A2 LED Indication is a discrete LED indicator designed for use in a variety of applications. It features a high-brightness RGB LED in a PLCC-4 package, with a power rating of 0.09W.
Features: - High-brightness RGB LED - PLCC-4 package - Power rating of 0.09W - Compatible with Avago Technologies ASMB-MTB1-0A3A2 LED
Applications: The Broadcom ASMB-MTB1-0A3A2 LED Indication is suitable for use in a variety of applications, including automotive, industrial, and consumer electronics. It can be used for status indication, backlighting, and decorative lighting.
