HLMP-CM30-S0000 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website
SOT-23
HLMP-CM30-S0000 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Through Hole
Package / Case
Radial
Surface Mount
NO
Packaging
Bulk
Published
2007
JESD-609 Code
e1
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)
Color
Green
HTS Code
8541.40.20.00
Number of Functions
1
Terminal Pitch
2.54mm
Reach Compliance Code
compliant
Base Part Number
HLMP-CM
Operating Temperature (Max)
80°C
Operating Temperature (Min)
-40°C
Configuration
Standard
Voltage - Forward (Vf) (Typ)
3.2V
Viewing Angle
30°
Optoelectronic Device Type
SINGLE COLOR LED
Current - Test
20mA
Lens Style
Round with Domed Top
Lens Size
5mm T-1 3/4
Millicandela Rating
1900mcd
Lens Transparency
Clear
Wavelength - Peak
524nm
Lens Color
Colorless
Forward Current-Max
0.03A
Overall Height
8.71mm
Wavelength - Dominant
526nm
Height (Max)
8.91mm
RoHS Status
RoHS Compliant
In-Stock:4622 items
HLMP-CM30-S0000 Product Details

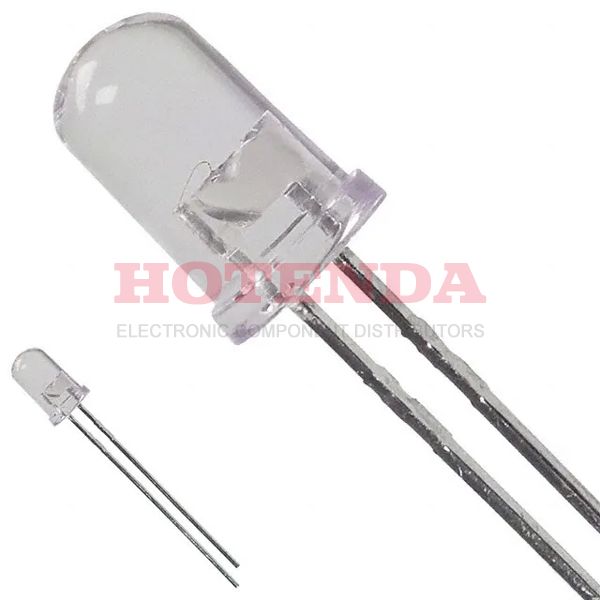

The Avago LED Indication - Discrete HLMP-CM30-S0000 is a 5mm round through-hole LED with a green clear lens. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. It features a wide viewing angle of 120°, a low forward voltage of 2.1V, and a high luminous intensity of up to 10,000mcd. It is RoHS compliant and has a long operating life of up to 100,000 hours. The LED is suitable for use in a variety of applications, including backlighting, indicators, and displays. It is also suitable for use in automotive, industrial, and consumer electronics applications.
