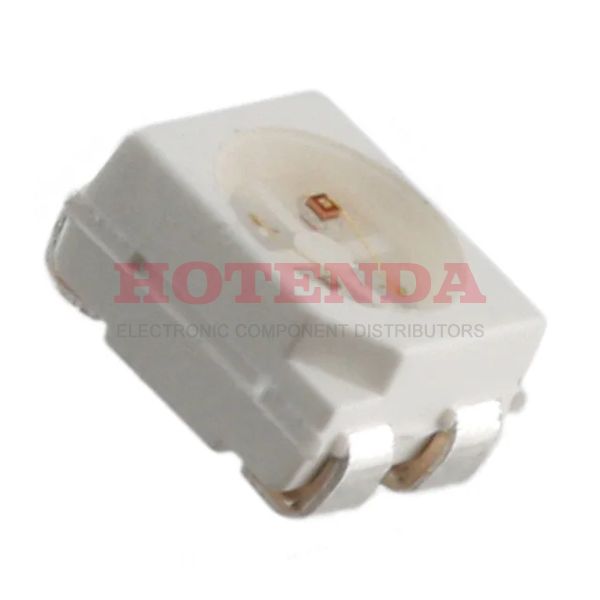

HSMF-A211-A00J1 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website
SOT-23
HSMF-A211-A00J1 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
18 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
4-PLCC
Number of Pins
4
Shape
Round
Packaging
Tape & Reel (TR)
Published
2004
Size / Dimension
3.20mm Lx2.80mm W
Part Status
Active
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
Number of Terminations
4
ECCN Code
EAR99
Terminal Finish
Pure Tin (Sn)
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Color
Green, Red
Additional Feature
HIGH RELIABILITY
Subcategory
Visible LEDs
Power Rating
78mW
Packing Method
TAPE AND REEL 7"
Number of Functions
1
Terminal Pitch
3mm
Depth
3.2mm
Base Part Number
HSMF-A2*
Number of Elements
2
Configuration
Independent
Voltage - Forward (Vf) (Typ)
2.2V Green 1.9V Red
Viewing Angle
120°
Optoelectronic Device Type
DUAL COLOR LED
Forward Current
20mA
Current - Test
20mA Green 20mA Red
Lens Style
Round with Flat Top
Lens Size
2.20mm Dia
Luminous Intensity
25 mcd
Millicandela Rating
20mcd Green, 25mcd Red
Illumination Color
Green, Red
Lens Transparency
Clear
Wavelength - Peak
565nm Green 645nm Red
Lens Color
Colorless
Reverse Voltage
5V
Wavelength - Dominant
569nm Green 637nm Red
Height
2.1mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:9823 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.606085
$0.606085
10
$0.571779
$5.71779
100
$0.539414
$53.9414
500
$0.508881
$254.4405
1000
$0.480076
$480.076
HSMF-A211-A00J1 Product Details
Description:
The Broadcom HSMF-A211-A00J1 is a discrete LED indication device that features a round shape and SMD package. It is available in red, yellow, and green colors and has a rated current of 30mA for each color.
Features:
• Round shape and SMD package • Available in red, yellow, and green colors • Rated current of 30mA for each color • 120° viewing angle
Applications:
The Broadcom HSMF-A211-A00J1 LED indication device is suitable for a wide range of applications, including automotive, industrial, and consumer electronics. It can be used for status indication, backlighting, and decorative lighting.
