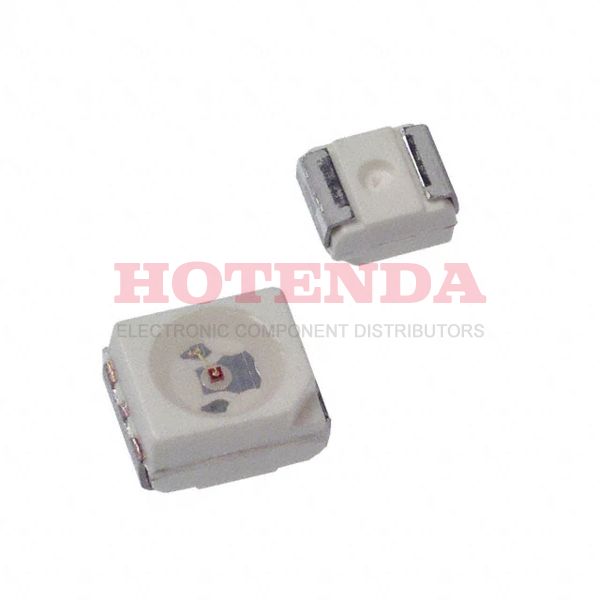

HSMN-A100-P00J1 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website
SOT-23
HSMN-A100-P00J1 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
9 Weeks
Contact Plating
Tin
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
2-PLCC
Number of Pins
2
Packaging
Tape & Reel (TR)
Published
2002
Size / Dimension
3.20mm Lx2.80mm W
JESD-609 Code
e3
Part Status
Active
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
Number of Terminations
2
ECCN Code
EAR99
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Color
Blue
Additional Feature
HIGH RELIABILITY, SUPPORTS INFRA RED
Subcategory
Visible LEDs
Power Rating
114mW
Packing Method
TAPE AND REEL 7"
Number of Functions
1
Terminal Pitch
3mm
Depth
2.8mm
Base Part Number
HSMN-A100
Number of Elements
1
Configuration
Standard
Power Dissipation
114mW
Voltage - Forward (Vf) (Typ)
3.4V
Viewing Angle
120°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Round with Flat Top
Lens Size
2.20mm Dia
Luminous Intensity
70 mcd
Millicandela Rating
70mcd
Lens Transparency
Clear
Wavelength - Peak
468nm
Lens Color
Colorless
Reverse Voltage
5V
Forward Voltage-Max
4.3V
Wavelength - Dominant
470nm
Height
2.1mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:5862 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.117254
$1.117254
10
$1.054013
$10.54013
100
$0.994352
$99.4352
500
$0.938068
$469.034
1000
$0.884970
$884.97
HSMN-A100-P00J1 Product Details
The Broadcom LED Indication - Discrete HSMN-A100-P00J1 is a high-quality, reliable LED indicator designed for a wide range of applications. This LED is a surface-mount PLCC-2 package with a blue light output. It features a wide viewing angle of 120°, a low forward voltage of 2.2V, and a maximum forward current of 20mA. The HSMN-A100-P00J1 is RoHS compliant and is designed to operate in temperatures ranging from -40°C to +85°C. This LED is ideal for use in automotive, industrial, and consumer electronics applications. It is also suitable for use in a variety of lighting applications, including backlighting, edge lighting, and general illumination. With its high-quality construction and reliable performance, the Broadcom LED Indication - Discrete HSMN-A100-P00J1 is an excellent choice for any application.
