HSMR-C190 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website
SOT-23
HSMR-C190 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
9 Weeks
Contact Plating
Gold
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Number of Pins
2
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2008
Size / Dimension
1.60mm Lx0.80mm W
JESD-609 Code
e4
Part Status
Active
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
Number of Terminations
2
ECCN Code
EAR99
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Blue
Additional Feature
SUPPORTS INFRARED
Subcategory
Visible LEDs
Power Rating
78mW
Packing Method
TAPE AND REEL 7"
Max Power Dissipation
78mW
Number of Functions
1
Depth
800μm
Base Part Number
HSMR-C190
Case Code (Metric)
1608
Case Code (Imperial)
0603
Number of Elements
1
Configuration
Standard
Power Dissipation
78mW
Voltage - Forward (Vf) (Typ)
3.4V
Viewing Angle
155°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Rectangle with Flat Top
Lens Size
1.00mmx0.80mm
Luminous Intensity
55 mcd
Millicandela Rating
55mcd
Lens Transparency
Diffused
Wavelength - Peak
469nm
Lens Color
White
Reverse Voltage
5V
Forward Voltage-Max
3.9V
Wavelength - Dominant
473nm
Height
930μm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:8837 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
HSMR-C190 Product Details

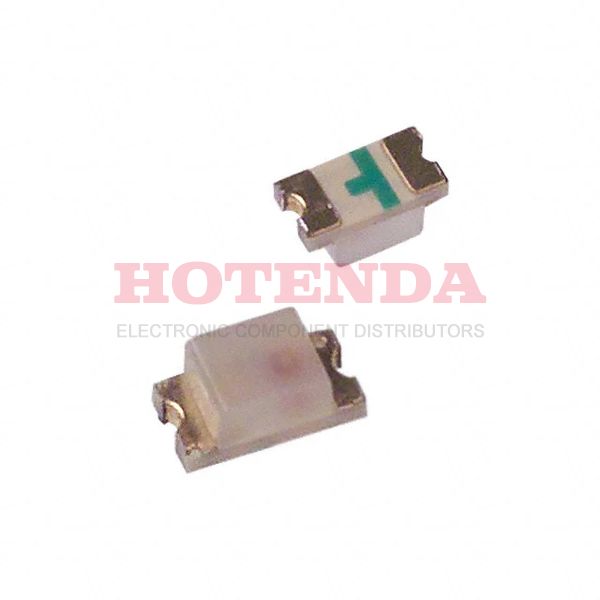

Description: The Broadcom LED Indication - Discrete HSMR-C190 is a blue diffused chip SMD 0603 LED. It is a surface mount device (SMD) with a 0603 package size.
Features: - Low power consumption - High brightness - Long life - Low thermal resistance - High reliability - RoHS compliant
Applications: The Broadcom LED Indication - Discrete HSMR-C190 is suitable for a wide range of applications, including automotive, industrial, consumer electronics, and medical devices. It can be used for backlighting, indicators, and general illumination.
