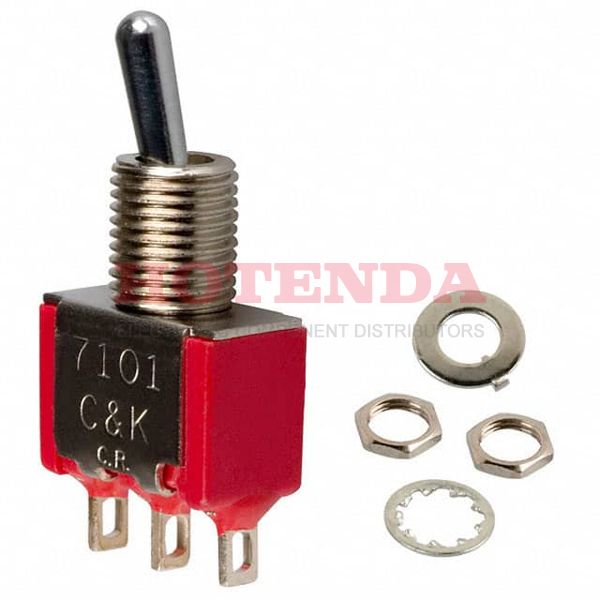

Switch Toggle ON None ON SPDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
SOT-23
7101SYZQES Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Contact Material
Silver
Mount
Panel
Mounting Type
Panel Mount
Housing Material
Stainless Steel
Actuator Material
Brass
Operating Temperature
-30°C~85°C
Packaging
Bulk
Published
2012
Series
7000
Feature
Satin Chrome Actuator
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Solder
Voltage - Rated DC
28V
Current Rating (Amps)
5A AC/DC
Orientation
Straight
Depth
6.86mm
Current Rating
5A
Termination Style
Solder Lug
Voltage - Rated AC
120V
Actuator Type
Standard Round
Circuit
SPDT
Switch Function
On-On
Panel Cutout Dimensions
Circular - 6.35mm Dia
Max Voltage Rating (AC)
250V
Max Current Rating
5A
Electrical Life
100,000 Cycles
Throw Configuration
SP, SPDT
Illumination
Non-Illuminated
Max Voltage Rating (DC)
28V
Illumination Type
Illuminated, Non-Illuminated
Bushing Thread
1/4-40
Length
12.7mm
Actuator Length
10.67mm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:898 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$5.979039
$5.979039
10
$5.640603
$56.40603
100
$5.321324
$532.1324
500
$5.020116
$2510.058
1000
$4.735959
$4735.959
7101SYZQES Product Details
The C&K Components 7101SYZQES Toggle Switch is a reliable and durable switch designed for a variety of applications. This switch features a single pole double throw (SPDT) configuration with an ON-None-ON toggle action. The round lever is easy to operate and the solder lug terminals provide a secure connection. This switch is rated for 5A at 250VAC and 28VDC and is panel mountable with threads. The 7101SYZQES is a great choice for a variety of applications and is sure to provide reliable performance.
