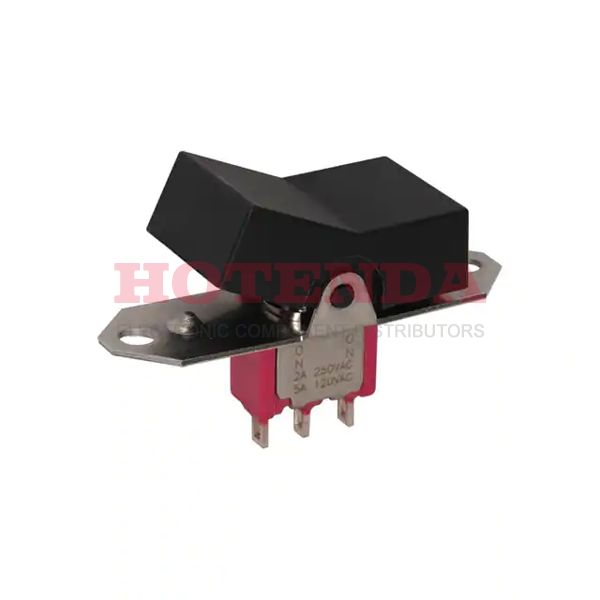

Name: 7201J50ZQE1
Brand: C&K
SKU: 7201J50ZQE1
Price: 9.81000 USD
Availability: InStock

new

7201J50ZQE1

Manufacturer part number:7201J50ZQE1

Manufacturer:C&K

Description:SWITCH ROCKER DPDT 5A 120V

Case Package:SOT-23

Datasheet:7201J50ZQE1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Silver
Contact Plating	Silver
Mount	Panel, Snap in
Mounting Type	Panel Mount, Snap-In
Housing Material	Stainless Steel
Actuator Material	Nylon
Operating Temperature	-30°C~85°C
Packaging	Bulk
Published	2008
Series	7000
Feature	Epoxy Sealed Terminals
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Max Operating Temperature	85°C
Min Operating Temperature	-30°C
Voltage - Rated DC	28V
Current Rating (Amps)	5A AC/DC
Depth	12.07mm
Current Rating	5A
Termination Style	Solder Lug
Voltage - Rated AC	120V
Actuator Type	Concave (Standard V)
Circuit	DPDT
Switch Function	On-On
Panel Cutout Dimensions	Rectangular - 15.24mm x 12.70mm
Color - Actuator/Cap	White
Max Voltage Rating (AC)	250V
Max Current Rating	5A
Electrical Life	100,000 Cycles
Throw Configuration	DPDT
Max Voltage Rating (DC)	28V
Actuator Marking	No Marking
Length	18.16mm
RoHS Status	ROHS3 Compliant

7201J50ZQE1 Product Details

Description: The C&K Components Rocker Switches 7201J50ZQE1 is a double pole double throw (DPDT) rocker switch rated for 5A at 120V. It is a panel mount switch with a black plastic actuator and a white base. The switch has two independent circuits, each with two positions (on/off).

Features:
- Double pole double throw (DPDT) switch
- Rated for 5A at 120V
- Panel mount switch
- Black plastic actuator and white base
- Two independent circuits, each with two positions (on/off)

Applications: The C&K Components Rocker Switches 7201J50ZQE1 is suitable for a wide range of applications, including lighting control, motor control, and other general purpose switching. It is commonly used in industrial, commercial, and residential settings.
