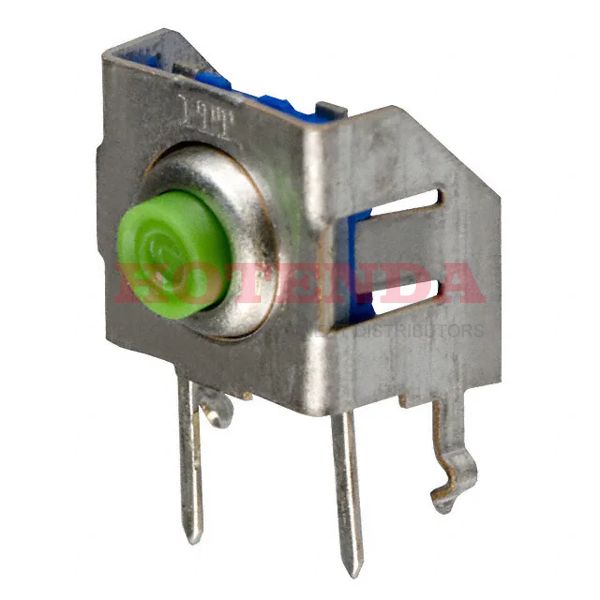

Name: KSA0V311LFT
Brand: C&K
SKU: KSA0V311LFT
Availability: InStock

new-10%

KSA0V311LFT

Manufacturer part number:KSA0V311LFT

Manufacturer:C&K

Description:SWITCH TACTILE SPST-NO 0.05A 32V

Case Package:SOT-23

Datasheet:KSA0V311LFT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Silver
Mount	Sealed, Through Hole
Mounting Type	Through Hole, Right Angle
Operating Temperature	-40°C~90°C
Packaging	Bulk
Published	2011
Series	KSA
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	PC Pins
Power Rating	1W
Voltage - Rated DC	32V
Orientation	Right Angle
Ingress Protection	IP60 - Dust Tight
Depth	7.3mm
Current Rating	50mA
Termination Style	PC Pin
Actuator Type	Standard
Circuit	SPST-NO
Switch Function	Off-Mom
Max Current Rating	50mA
Throw Configuration	SPST
Illumination	Non-Illuminated
Max Voltage Rating (DC)	32V
Mechanical Life	1e+06 cycles
Operating Force	130gf
Actuator Orientation	Side Actuated
Outline	8.00mm x 8.00mm
Contact Rating @ Voltage	0.05A @ 32VDC
Length	9.5mm
Width	8mm
Actuator Length, Right Angle	3.23mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	Dust Tight, IP60

KSA0V311LFT Product Details

Description: The C&K Components KSA0V311LFT is a single-pole single-throw (SPST) tactile switch designed for low-current applications. It has a maximum current rating of 0.05A and a maximum voltage rating of 32V.

Features:
- SPST design
- Low current rating of 0.05A
- Maximum voltage rating of 32V
- High contact reliability
- Long life expectancy
- RoHS compliant

Applications: The C&K Components KSA0V311LFT tactile switch is suitable for a wide range of applications, including consumer electronics, automotive, medical, and industrial control. It is ideal for applications that require low current and high contact reliability.
