Name: 2FA54-73
Brand: Carling Technologies
SKU: 2FA54-73
Price: 9.56000 USD
Availability: InStock

new

2FA54-73

Manufacturer part number:2FA54-73

Manufacturer:Carling Technologies

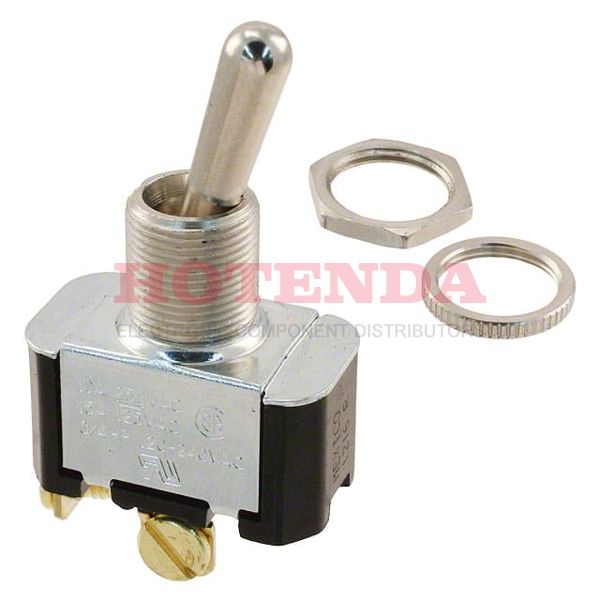

Description:SWITCH TOGGLE SPST 15A 125V

Case Package:SOT-23

Datasheet:2FA54-73 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Silver
Contact Plating	Nickel
Mount	Bushing, Panel
Mounting Type	Panel Mount
Actuator Material	Brass
Operating Temperature	-17.8°C~65.6°C
Packaging	Bulk
Published	1998
Series	F
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	2
Max Operating Temperature	65.6°C
Min Operating Temperature	-17.8°C
Voltage - Rated	250V
Current Rating (Amps)	15A AC
Orientation	Straight
Current Rating	15A
Termination Style	Screw Terminal
Voltage - Rated AC	125V
Approval Agency	CSA, UL
Actuator Type	Standard Round
Circuit	SPST
Switch Function	On-Off
Panel Cutout Dimensions	Circular - 12.70mm Dia
Insulation Resistance	100MOhm
Max Voltage Rating (AC)	250V
Electrical Life	50,000 Cycles
Number of Poles	1
Throw Configuration	SPST
Illumination	Non-Illuminated
Mechanical Life	100000 cycles
Contact Current Rating	10A
Illumination Type	Illuminated, Non-Illuminated
Bushing Thread	15/32-32
Hole Diameter	12.7 mm
Length	28.8mm
Width	16.1mm
Actuator Length	17.45mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant

2FA54-73 Product Details

The Carling Technologies Toggle Switches 2FA54-73 is a single pole single throw (SPST) toggle switch rated for 15A at 125V. It is a standard toggle switch with a black plastic body and a black plastic toggle. It is designed for use in a variety of applications, including automotive, marine, and industrial. It is UL and CSA approved.

Features of the Carling Technologies Toggle Switches 2FA54-73 include a black plastic body and toggle, a 15A rating at 125V, and UL and CSA approval. It is also designed to be easy to install and use.

Applications of the Carling Technologies Toggle Switches 2FA54-73 include automotive, marine, and industrial applications. It can be used to control a variety of devices, such as lights, fans, pumps, and motors. It can also be used to control the power supply to a variety of devices.
