6FA54-73

6FA54-73

6FA54-73

Carling Technologies

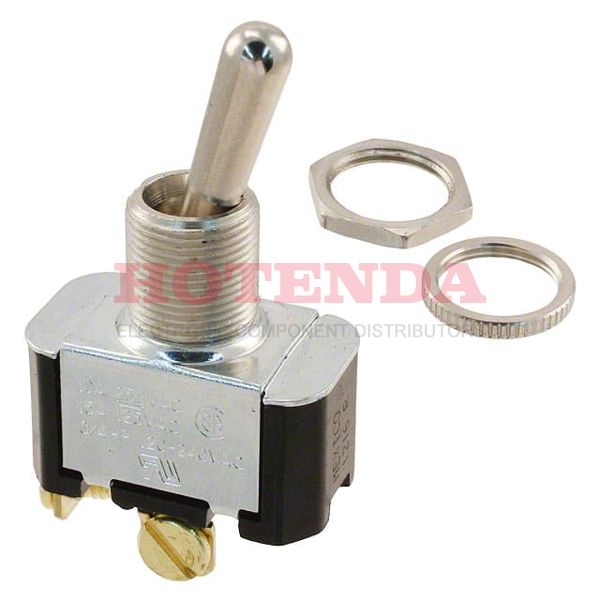

SWITCH TOGGLE SPST-NO 15A 125V

SOT-23

6FA54-73 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 6 Weeks
Contact PlatingNickel
Mount Bushing, Panel
Mounting Type Panel Mount
Actuator MaterialBrass
Operating Temperature-17.8°C~65.6°C
PackagingBulk
Published 1998
Series F
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Voltage - Rated 250V
HTS Code8536.50.90.65
Current Rating (Amps) 15A AC
Orientation Straight
Current Rating15A
Termination Style Screw Terminal
Voltage - Rated AC 125V
Approval Agency CSA, UL
Body Length or Diameter 28.8mm
Body Breadth 16.1 mm
Actuator Type Standard Round
Circuit SPST-NO
Switch FunctionOff-Mom
Panel Cutout Dimensions Circular - 12.70mm Dia
Max Voltage Rating (AC) 250V
Electrical Life 25,000 Cycles
Throw Configuration SPDT, SPST
Illumination Non-Illuminated
Mechanical Life 100000 cycles
Switch TypeTOGGLE SWITCH
Contact Current Rating15A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread15/32-32
Contact (AC) Max Rating R Load 15A@125VAC
Hole Diameter 12.7 mm
Body Height 17.02mm
Actuator Length 17.45mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:470 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.65000$7.65
10$7.45100$74.51
25$7.24920$181.23
50$6.84660$342.33
100$6.64520$664.52
250$6.44380$1610.95
500$5.43696$2718.48

6FA54-73 Product Details

Carling Technologies Toggle Switches 6FA54-73 are single-pole single-throw (SPST) toggle switches designed for use in a variety of applications. These switches feature a 15A 125V rating and are designed to provide reliable switching performance in a variety of environments. The toggle switch is constructed from durable materials and is designed to withstand the rigors of everyday use. The switch is also designed to be easy to install and use, making it ideal for a variety of applications.

Features of the Carling Technologies Toggle Switches 6FA54-73 include:

• 15A 125V rating
• Durable construction
• Easy to install and use
• Variety of mounting options
• Variety of colors and styles

Applications for the Carling Technologies Toggle Switches 6FA54-73 include:

• Automotive
• Industrial
• Marine
• Home appliances
• Lighting
• Audio/visual equipment
• Security systems
