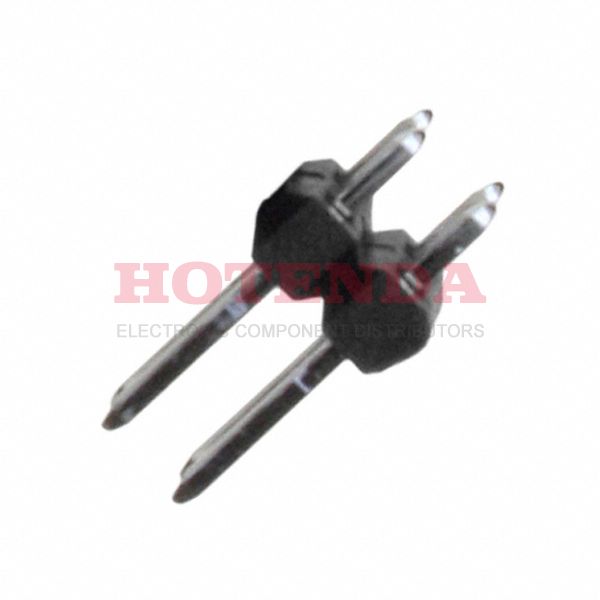

Name: 0010897041
Brand: Molex
SKU: 0010897041
Price: 0.46000 USD
Availability: InStock

new-10%

0010897041

Manufacturer part number:0010897041

Manufacturer:Molex

Description:0010897041 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0010897041 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Packaging	Bulk
Series	C-Grid 70280
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	4
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.107 2.71mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
Overall Contact Length	0.437 11.10mm
Contact Finish Thickness - Mating	150.0μin 3.81μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0010897041 Product Details

0010897041 Overview

The packaging contains Header, Breakaway.Mounting type is Through Hole.An Bulk case is utilized for packaging the product.The product is a member of the C-Grid 70280 Series.Here's a possible application for the device: Automotive, General Purpose, Lighting, Medical, Telecommunications.
