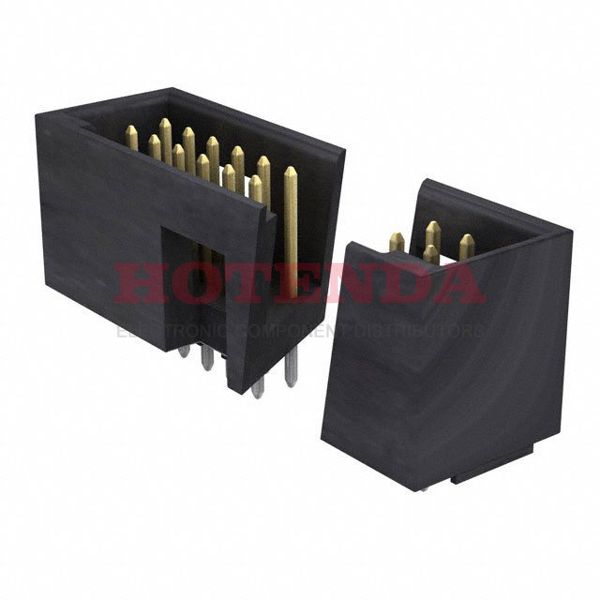

Name: 0015800445
Brand: Molex
SKU: 0015800445
Price: 12.81000 USD
Availability: InStock

new

0015800445

Manufacturer part number:0015800445

Manufacturer:Molex

Description:0015800445 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0015800445 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material	Brass
Housing Material	Polymer
Packaging	Tube
Series	C-Grid 70567
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	44
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Fastening Type	Detent Lock
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Vertical
Insulation Height	0.475 12.07mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	2.5A
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.130 3.30mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.315 8.00mm
UL Flammability Code	94V-0
Housing Color	Black
Overall Contact Length	0.570 14.48mm
Contact Resistance	15mOhm
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	250V
Length	58.73mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0015800445 Product Details

0015800445 Overview

A Header package is included with it.Through Hole is the mount type.Packaging is performed using a Tube case.It is part of the C-Grid 70567 Series of products.Using it at a temperature below 105°C is ideal.There's a minimum temperature of -55°C for this device.In addition to Automotive, General Purpose, Lighting, Medical, Telecommunications, there are other possible applications for the device.In this case, Through Hole mounts the part.
