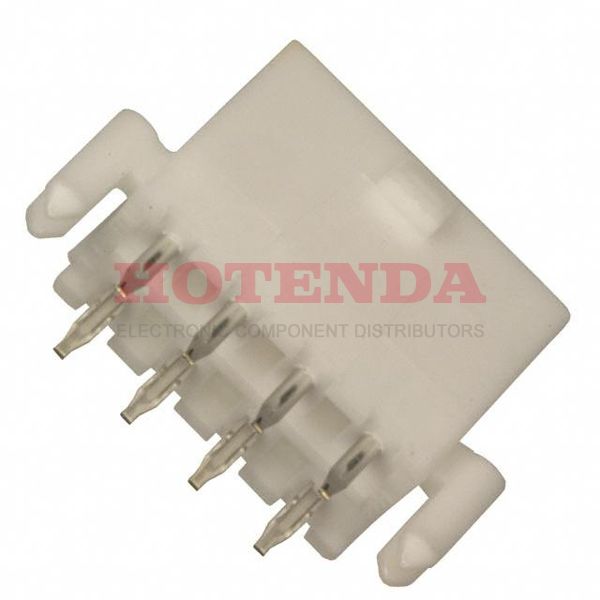

Name: 0039289088
Brand: Molex
SKU: 0039289088
Price: 4.16000 USD
Availability: InStock

new-10%

0039289088

Manufacturer part number:0039289088

Manufacturer:Molex

Description:0039289088 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0039289088 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6
Packaging	Tray
Series	Mini-Fit Jr 5566
Feature	Board Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	8
Applications	General Purpose, Industrial, Telecommunications
Number of Rows	2
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Type	Male Pin
Insulation Height	0.504 12.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.165 4.20mm
Insulation Color	Natural
Row Spacing - Mating	0.165 (4.20mm)
Contact Length - Post	0.138 3.50mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0039289088 Product Details

0039289088 Overview

You'll get Header packages.Through Hole is the mount type.A Tray case is used to package the product.It's from the Mini-Fit Jr 5566 Series.A possible application is General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Board Lock feature.
