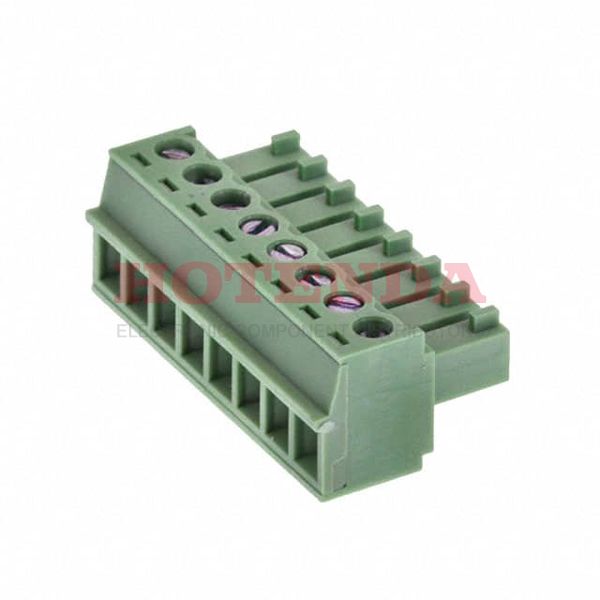

Name: 0395105008
Brand: Molex
SKU: 0395105008
Price: 3.22000 USD
Availability: InStock

new-10%

0395105008

Manufacturer part number:0395105008

Manufacturer:Molex

Description:0395105008 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395105008 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~115°C
Packaging	Bulk
Series	Eurostyle ESE 39510
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	8
Max Operating Temperature	115°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Pitch	0.150 3.81mm
Orientation	Right Angle
Insulation Height	0.437 11.10mm
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	8
Housing Color	Green
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	16-30 AWG
Current - UL	8A
Torque - Screw	0.23 Nm (2.0 Lb-In)
Positions Per Level	8
Plug Wire Entry	180°
Wire Strip Length	6.5mm
Number of Positions Per Level	8
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395105008 Product Details

0395105008 Overview

A Free Hanging (In-Line) mounting type is specified for the device.It has been determined that a Bulk case is necessary to package the product.There is a product in the Eurostyle ESE 39510 Series.You should use it at a temperature below 115°C.A minimum temperature of -40°C must be maintained for the operation of this device.You've got Cable, Free Hanging mounted on the part.It runs at -40°C~115°C Operating Temperature.As with other Plug, Female Sockets products, this part has a lot of benefits.
