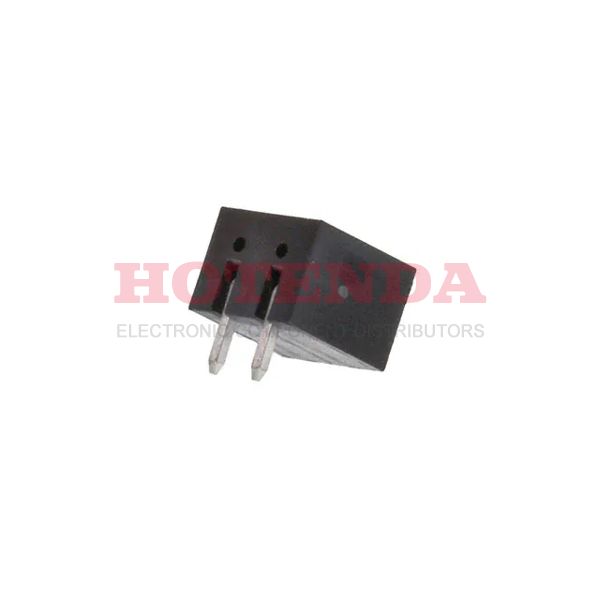

Name: 0395121002
Brand: Molex
SKU: 0395121002
Price: 1.06000 USD
Availability: InStock

new-10%

0395121002

Manufacturer part number:0395121002

Manufacturer:Molex

Description:0395121002 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395121002 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39512
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Black
Number of Rows	1
Pitch	0.150 3.81mm
Orientation	Horizontal, Vertical
Depth	9.2mm
Insulation Height	0.270 6.86mm
Current Rating	8A
Termination Style	Solder
Number of Contacts	2
Housing Color	Black
Contact Resistance	8mOhm
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Circuits	2
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	8A
Positions Per Level	2
Header Orientation	90°, Right Angle
Number of Positions Per Level	2
Length	9.01mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395121002 Product Details

0395121002 Overview

Through Hole is the mount type.Packaging for the product is carried out via a Bulk case.The product is a member of the Eurostyle ESE 39512 Series.If the temperature is below 105°C, it's best to use it.Temperatures below -40°C are required for this device to operate.There is a Through Hole mount on the part.Part 2 consists of circuits of 0 ohms.-40°C~105°C Operating Temperature is the default operating temperature for the device.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
