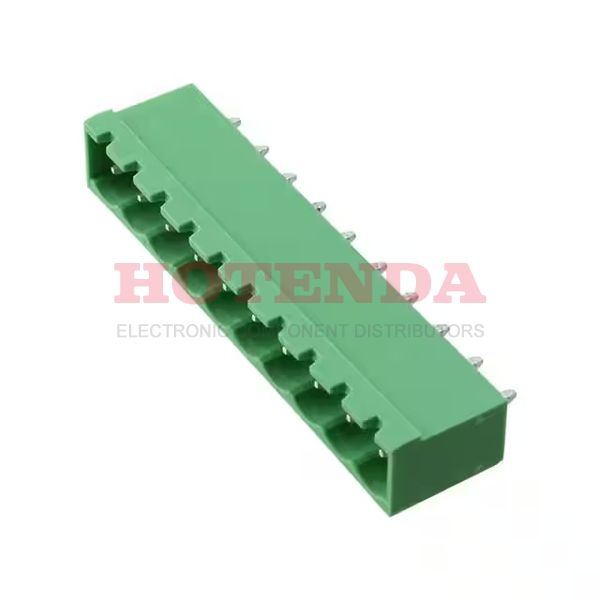

Name: 0395216010
Brand: Molex
SKU: 0395216010
Price: 3.19000 USD
Availability: InStock

new-10%

0395216010

Manufacturer part number:0395216010

Manufacturer:Molex

Description:0395216010 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395216010 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39521
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	10
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Pitch	0.197 5.00mm
Orientation	Vertical
Depth	8.3mm
Insulation Height	0.470 11.94mm
Termination Style	Solder
Housing Color	Green
Voltage	300V
Contact Tail Length	0.130 3.30mm
Max Voltage Rating (AC)	300V
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Positions Per Level	10
Header Orientation	Vertical
Number of Positions Per Level	10
Length	52mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395216010 Product Details

0395216010 Overview

Through Hole is the type of mounting for the device.Packaging for the product is carried out via a Bulk case.This product is in the Eurostyle ESE 39521 Series.Using it at a temperature below 105°C is ideal.Temperature must be -40°C to operate this device.Mounting of the part is based on Through Hole.This device operates at a temperature of -40°C~105°C.There are many benefits shared between this part and other Header, Male Pins, Shrouded (4 Side) products.
