0395345009

Molex

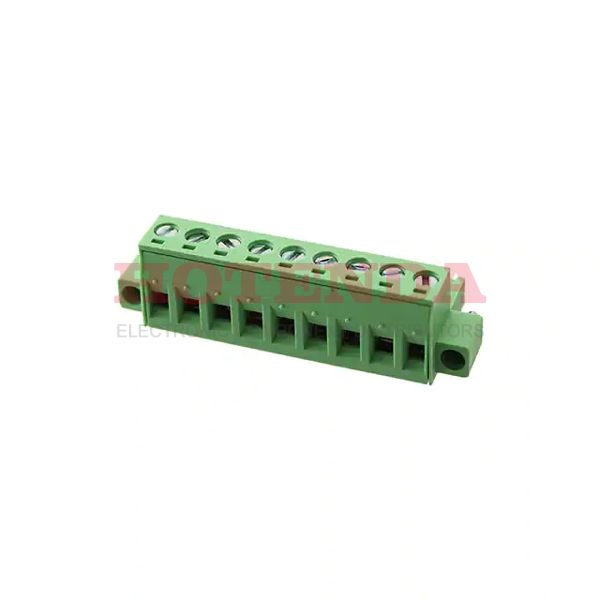

0395345009 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395345009 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialPhosphor Bronze
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~115°C
PackagingBulk
Series Eurostyle ESE 39534
Feature Mating Flange
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 9
Color Green
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 18A
Torque - Screw 0.56 Nm (5.0 Lb-In)
Plug Wire Entry 180°
Wire Strip Length 6.5mm
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:1092 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$6.75000$6.75
10$5.19800$51.98
25$4.88200$122.05
50$4.36180$218.09
100$4.27140$427.14
250$3.95500$988.75
500$3.59340$1796.7

0395345009 Product Details

0395345009 Overview


It's mounted Free Hanging (In-Line).In order to package the product, a Bulk case is used.It is part of the Eurostyle ESE 39534 Series of products.This feature makes it more powerful in a number of ways due to its Mating Flange feature.Operating temperature is -40°C~115°C.The benefts of this part are similar to those of other Plug, Female Sockets products.

0395345009 Features


Eurostyle ESE 39534 series

0395345009 Applications


There are a lot of Molex 0395345009 Terminal Blocks applications.

  • Anywhere power is distributed
  • Electrical substations
  • LED municipal outdoor and street lighting
  • Variable speed/frequency drivers
  • Embedded systems
  • Instrumentation
  • Automotive Electronics
  • Transportation
  • Medical technology
  • Control panels
