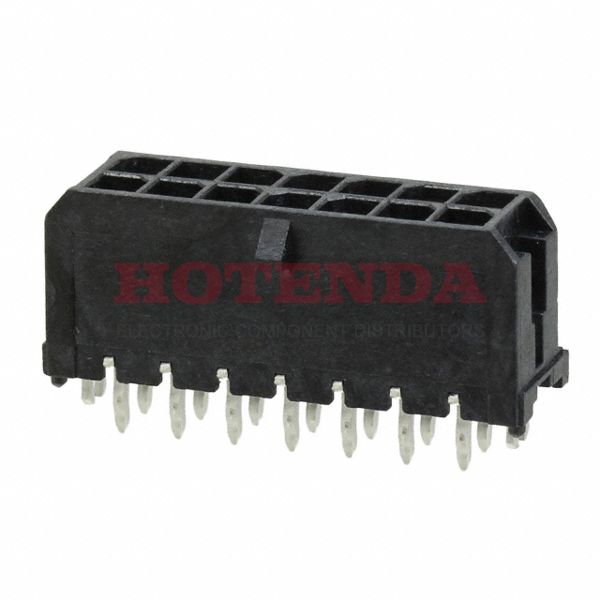

Name: 0430451425
Brand: Molex
SKU: 0430451425
Price: 4.68000 USD
Availability: InStock

new-10%

0430451425

Manufacturer part number:0430451425

Manufacturer:Molex

Description:0430451425 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0430451425 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Shell Material	POLYETHYLENE
Packaging	Tray
Series	Micro-Fit 3.0 43045
Feature	Board Guide, Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	14
Applications	General Purpose, Medical, Military, Telecommunications
Number of Rows	2
Voltage - Rated	600V
Additional Feature	MICRO-FIT 3.0, POLARIZED, SHROUDED
HTS Code	8536.69.40.30
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	8A
Insulation Height	0.390 9.91mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.118 3.00mm
Insulation Color	Black
Row Spacing - Mating	0.118 (3.00mm)
Contact Length - Post	0.125 3.18mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Empty Shell	NO
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0430451425 Product Details

0430451425 Overview

Packaging is Header.The mounting type of the device is Through Hole.Tray cases are used to package the product.The product is a member of the Micro-Fit 3.0 43045 Series.As well as MICRO-FIT 3.0, POLARIZED, SHROUDED, to name a few.General Purpose, Medical, Military, Telecommunications is one possible application.As a result of its Board Guide, Board Lock feature, it possesses a great deal of power.
