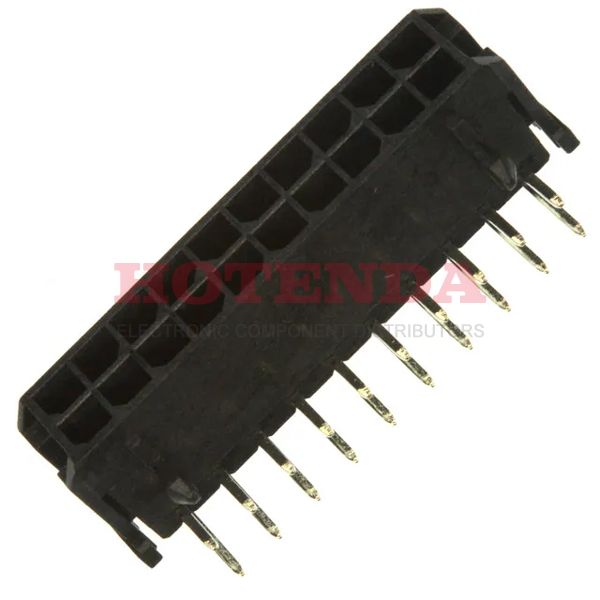

Name: 0430452001
Brand: Molex
SKU: 0430452001
Price: 7.54000 USD
Availability: InStock

new-10%

0430452001

Manufacturer part number:0430452001

Manufacturer:Molex

Description:0430452001 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0430452001 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Brass
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Shell Material	POLYETHYLENE
Packaging	Tray
Series	Micro-Fit 3.0 43045
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	20
Applications	General Purpose, Medical, Military, Telecommunications
Number of Rows	2
Voltage - Rated	600V
Additional Feature	MICRO-FIT 3.0, SHROUDED, POLARIZED
HTS Code	8536.69.40.30
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	8A
Insulation Height	0.290 7.37mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.118 3.00mm
Insulation Color	Black
Row Spacing - Mating	0.118 (3.00mm)
Contact Length - Post	0.125 3.18mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Empty Shell	NO
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0430452001 Product Details

0430452001 Overview

A Header package is included with it.The device's mounting type is Through Hole, Right Angle.It has been determined that a Tray case is necessary to package the product.This product is from the Micro-Fit 3.0 43045 Series.Then there's MICRO-FIT 3.0, SHROUDED, POLARIZED, for example.There is the possibility of using the device for General Purpose, Medical, Military, Telecommunications.A number of advantages can be derived from its Board Lock feature.
