Name: 0532611271
Brand: Molex
SKU: 0532611271
Price: 1.37000 USD
Availability: InStock

new-10%

0532611271

Manufacturer part number:0532611271

Manufacturer:Molex

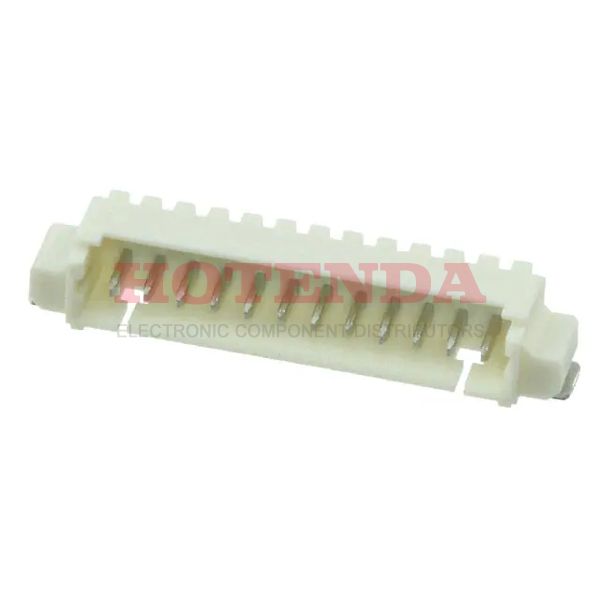

Description:PicoBlade 53261 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA46), Nylon 4/6 12-Position Board to Cable/Wire 0.134 3.40mm Heigh

Case Package:SOT-23

Datasheet:0532611271 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Contact Shape	Rectangular
Insulation Material	Polyamide (PA46), Nylon 4/6
Packaging	Tape & Reel (TR)
Series	PicoBlade 53261
JESD-609 Code	e3
Feature	Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	12
Applications	Automotive, General Purpose, Industrial, Medical
Number of Rows	1
Fastening Type	Detent Lock
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Blade
Mixed Contacts	NO
Total Number of Contacts	12
Insulation Height	0.134 3.40mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.049 1.25mm
Insulation Color	Natural
Shrouding	Shrouded - 4 Wall
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	39.4μin 1.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0532611271 Product Details

0532611271 Overview

Currently, it is packaged in Header.The mounting type of the device is Surface Mount, Right Angle.A Tape & Reel (TR) case is used to package the product.A product of the PicoBlade 53261 Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, General Purpose, Industrial, Medical.A number of features make the Solder Retention feature more powerful.
