10M16SCU169A7G Overview

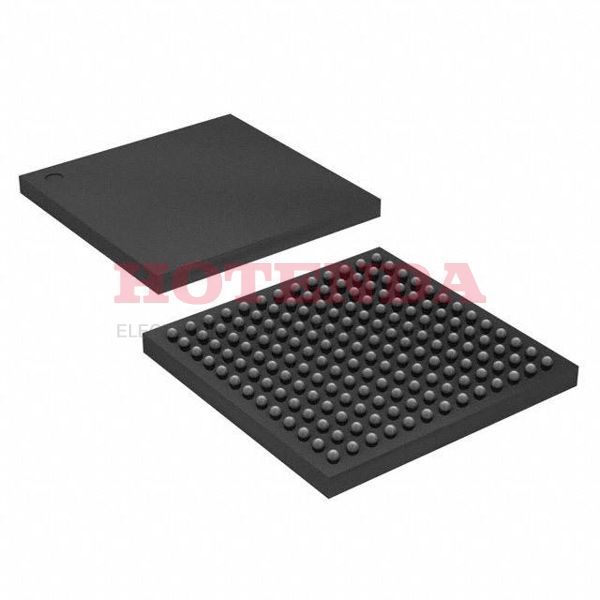

A 169-LFBGA package is provided with this component. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. Fpga chips is programmed wFpga chipsh 130 I/Os for transferring data in a more coherent manner. Logic blocks consist of 16000 logic elements/cells. In this case, the FPGA part belongs to the Field Programmable Gate Arrays family. Using a Surface Mount connector, you can mount this FPGA module on the development board. A supply voltage of 2.85V~3.465V is needed in order for fpga chips to operate. The FPGA belongs to the MAX? 10 series of FPGAs, and it is one type of FPGA. Fpga chips is important to maintain the operating temperature wFpga chipshin the range of -40°C~125°C TJ when operating the machine. In this device, 130 outputs are incorporated in order to provide you with maximum flexibility. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. There are a total of 169 terminations. This device is equipped with 562176 RAM bits in terms of its RAM si562176e. The FPGA consists of 1000 LABs/CLBs. Powered by a 3/3.3V power supply, it can be operated by almost anyone.
10M16SCU169A7G Features
130 I/Os
Up to 562176 RAM bits
10M16SCU169A7G Applications
There are a lot of Intel 10M16SCU169A7G FPGAs applications.
- Automotive advanced driver assistance systems (ADAS)
- ASIC prototyping
- Electronic Warfare
- Industrial Ethernet
- Consumer Electronics
- Filtering and communication encoding
- Camera time adjustments
- Solar Energy
- Data Mining
- Wireless Communications
