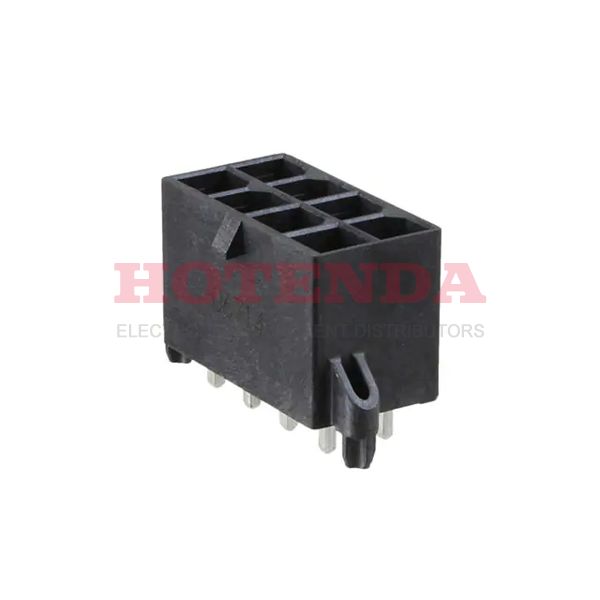

Name: 1720650008
Brand: Molex
SKU: 1720650008
Price: 7.21000 USD
Availability: InStock

new-10%

1720650008

Manufacturer part number:1720650008

Manufacturer:Molex

Description:1720650008 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:1720650008 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Option 1	LATCH
Board Mounting Option	SPLIT BOARD LOCK
Packaging	Tray
Published	2013
Series	Mega-Fit
Feature	Board Guide, Glow Wire Compliant
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	8
Applications	Automotive, General Purpose, Industrial, Telecommunications
Number of Rows	2
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Type	Male Pin
Mixed Contacts	YES
Insulation Height	0.583 14.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.224 5.70mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Row Spacing - Mating	0.224 (5.70mm)
Contact Length - Post	0.147 3.73mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Operating Temperature (Max)	105°C
Operating Temperature (Min)	-40°C
Contact Resistance	5mOhm
Insulation Resistance	1000000000Ohm
Plating Thickness	15μin
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Length - Termination	0.147 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

1720650008 Product Details

1720650008 Overview

The product comes in a package of Header.A Through Hole mounting type is specified for the device.In order to package the product, a Tray case is used.Product number Mega-Fit belongs to the Mega-Fit Series.This device can be used for Automotive, General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Board Guide, Glow Wire Compliant feature.
