5219450

Manufacturer part number:5219450

Manufacturer:Dialight

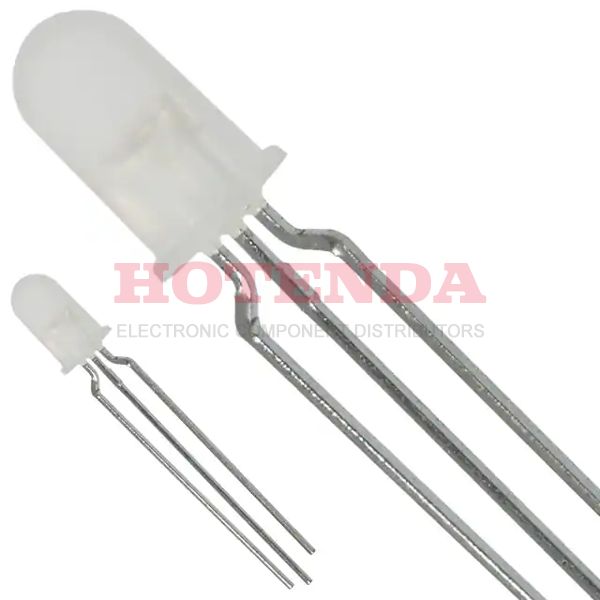

Description:LED GREEN/RED DIFFUSED 5MM T/H

Case Package:SOT-23

Datasheet:5219450 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	Radial - 3 Leads
Surface Mount	NO
Mounting Feature	RADIAL MOUNT
Packaging	Bulk
Published	2005
Series	521
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Terminal Finish	Tin/Lead (Sn/Pb)
Color	Green, Red
HTS Code	8541.40.20.00
Subcategory	Visible LEDs
Number of Functions	1
Terminal Pitch	2.54mm
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-20°C
Configuration	Common Cathode
Voltage - Forward (Vf) (Typ)	2.3V Green 2.1V Red
Viewing Angle	65°
Optoelectronic Device Type	DUAL COLOR LED
Current - Test	10mA Green 10mA Red
Lens Style	Round with Domed Top
Lens Size	4.83mm Dia
Luminous Intensity	5.0/8.0 mcd
Millicandela Rating	8mcd Green, 5mcd Red
Lens Transparency	Diffused
Wavelength - Peak	565nm Green 635nm Red
Lens Color	White
Forward Current-Max	0.025A
Forward Voltage-Max	2.5V
Overall Height	8.81mm
T-code	T-1 3/4
RoHS Status	Non-RoHS Compliant

About 5219450

The 5219450 from Dialight is a high-performance microcontroller designed for a wide range of embedded applications. This component features LED GREEN/RED DIFFUSED 5MM T/H.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the 5219450, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
