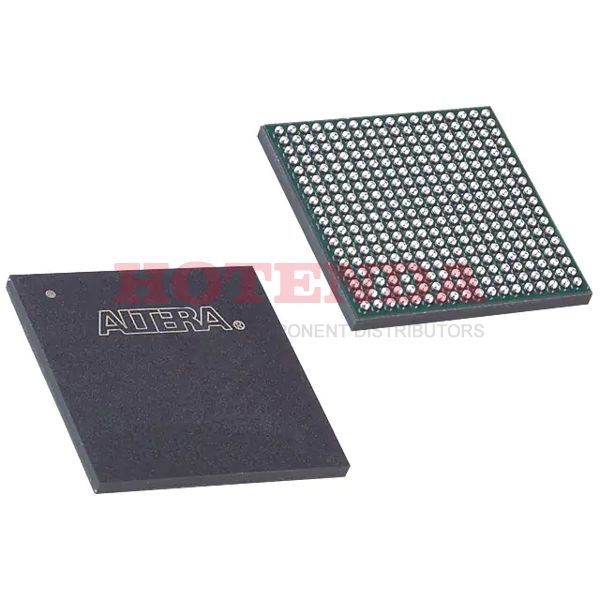

EP3C25F324I7N Overview
This package is included in the 324-BGA package and is available for purchase. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. The I/Os are designed to facilitate a more coherent transfer of data. There are 24624 logic elements/cells to form a fundamental building block. An electrical supply voltage of 1.2V powers it. Part of the Field Programmable Gate Arrays family, this FPGA part is a programmable gate array. Using a Surface Mount connector, you can mount this FPGA module on the development board. There is a 1.15V~1.25V-volt supply voltage required for the device to operate. The FPGA belongs to the Cyclone? III series of FPGAs, and it is one type of FPGA. The operating temperature should be kept at -40°C~100°C TJ when operating. There are 215 outputs incorporated in this device. In order to save space, this FPGA model has been contained in Tray. There are a total of 324 terminations. Fpga chips is important to note that this device has a RAM capacFpga chipsy of 608256 bFpga chipss. Its base part number EP3C25 can be used to find parts that are related to it. 1539 LABs and CLBs are built into this FPGA. Most of the time, it uses a crystal oscillating at 472.5MHz to generate the signal.
EP3C25F324I7N Features
215 I/Os
Up to 608256 RAM bits
EP3C25F324I7N Applications
There are a lot of Intel EP3C25F324I7N FPGAs applications.
- Data Center
- Embedded Vision
- Ecosystem
- Voice recognition
- Audio
- ADAS
- Data center search engines
- ASIC prototyping
- Data center hardware accelerators
- Development Boards and Shields for Microcontrollers
